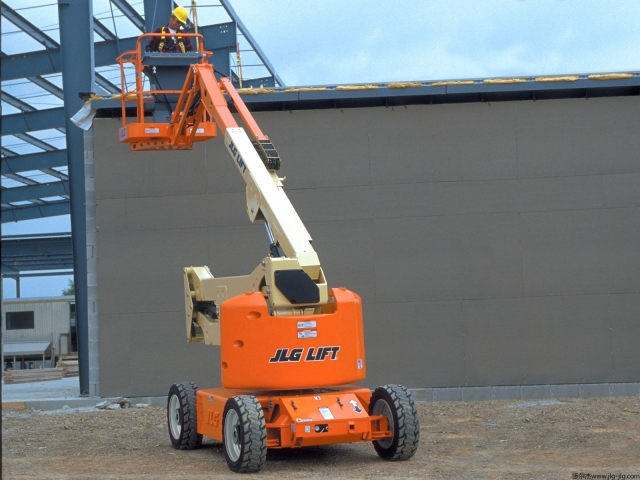

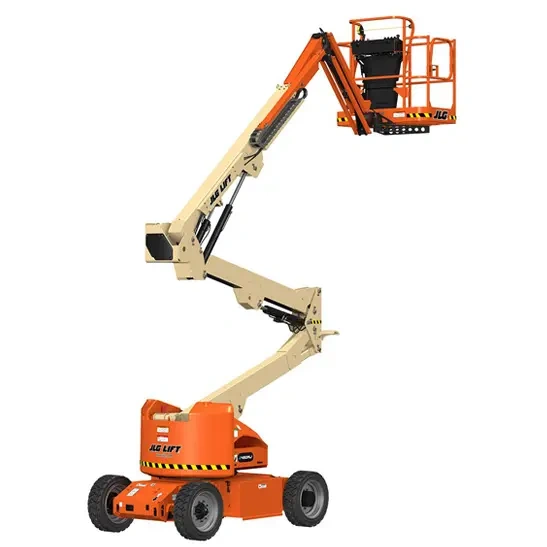

Key Features of JLG E450A Curved arm type aerial work platform Main features:
|
Technical parameter |
|
|
Storage battery |
8 x 6 volts, 370 ampere-hours |
|
Electrical system |
48 Volts DC |
|
Travel speed - Platform reduction |
5.20 km/h / 3.2 mph |
|
Gradient - 2 wheel drive |
30%
|
| Platform load
|
230 kg /507.1 lb
|
|
Platform load - not limited |
226.80 kg /500 lb
|
|
Turntable rotation |
360 Degrees |
|
Rotation type |
Discontinuous |
|
Ground clearance |
0.2 m /8 in. |
|
Machine height |
1.99m/ 6.5ft |
|
Machine length |
5.82 m / 19.1 ft |
|
Machine width |
1.75 m / 5.7 ft |
|
Platform Size A |
0.76 m /2.5 ft |
|
Platform size B |
1.52 m / 5 ft |
|
Platform height |
13.72 m / 45 ft |
|
Drift the tail |
0 m /0 in. |
|
Tyre size |
240/55-17.5 Inflate |
|
Wheelbase |
2.01 m / 6.6 ft |
|
Working height |
14.19 m / 46.6 ft |
|
Horizontal forearm rotation |
0 Degrees |
|
Horizontal elongation |
7.04 m / 23.1 ft |
|
Platform height |
13.72 m / 45 ft |
|
Crossing height |
7.49 m / 24.6 ft |
|
Capacity - Hydraulic tank |
20 L/5.3 gal. |
|
Vehicle weight |
5715 kg / 12599.4 lb |
