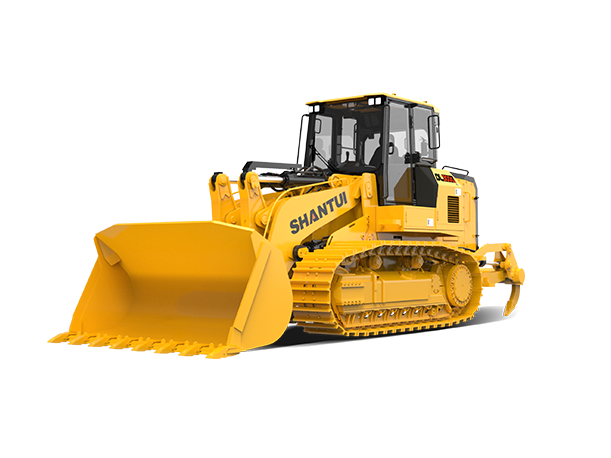

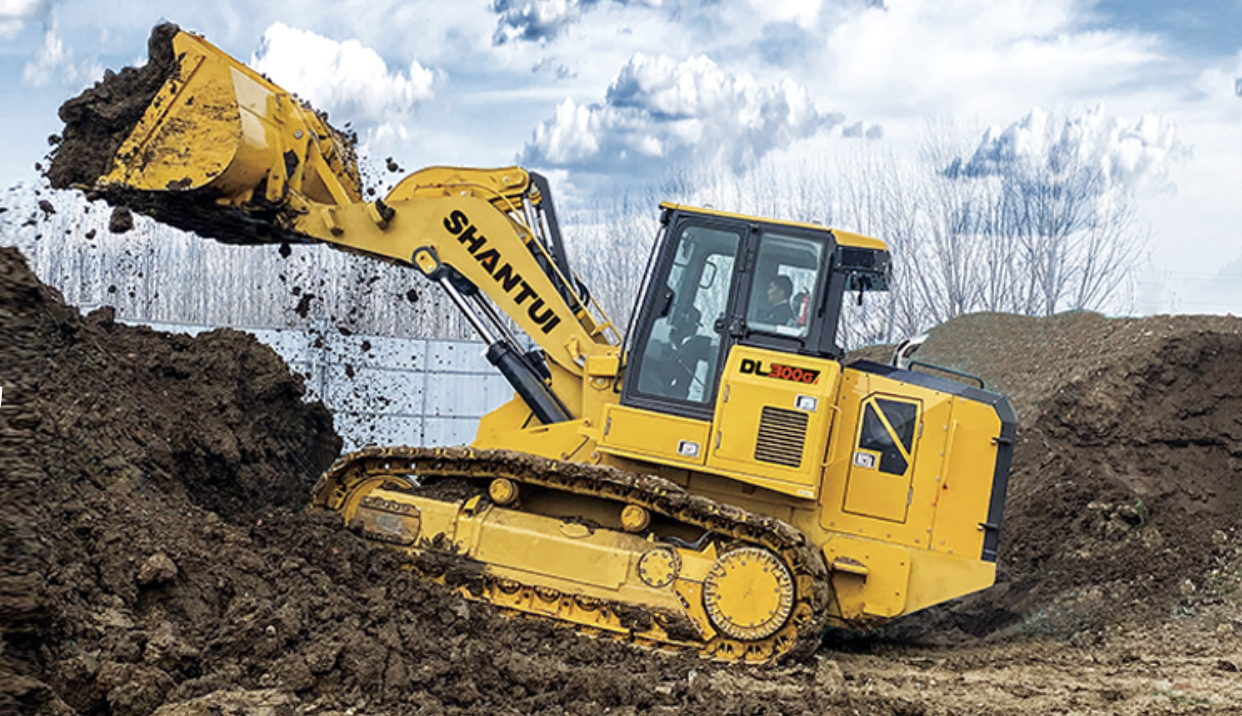

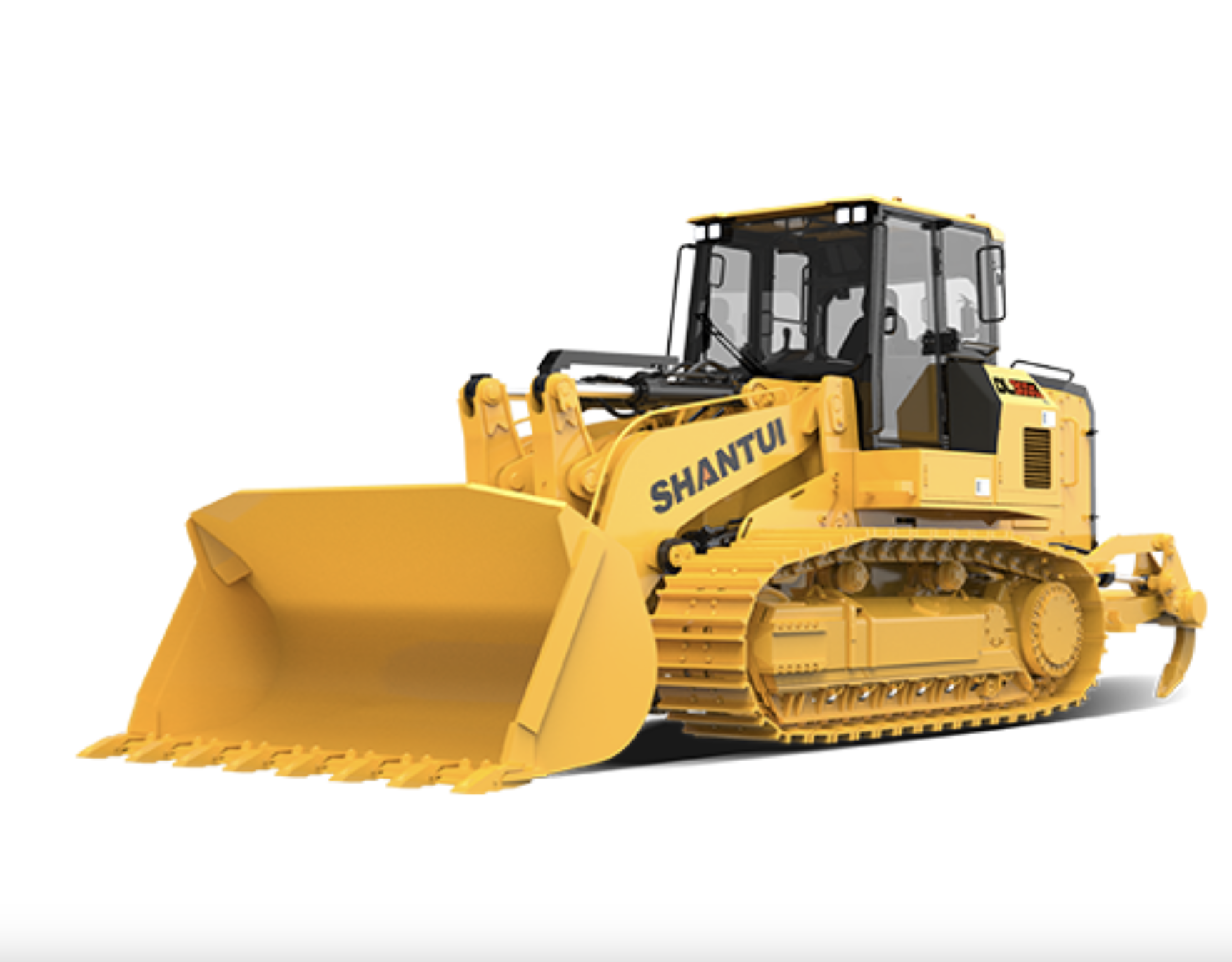

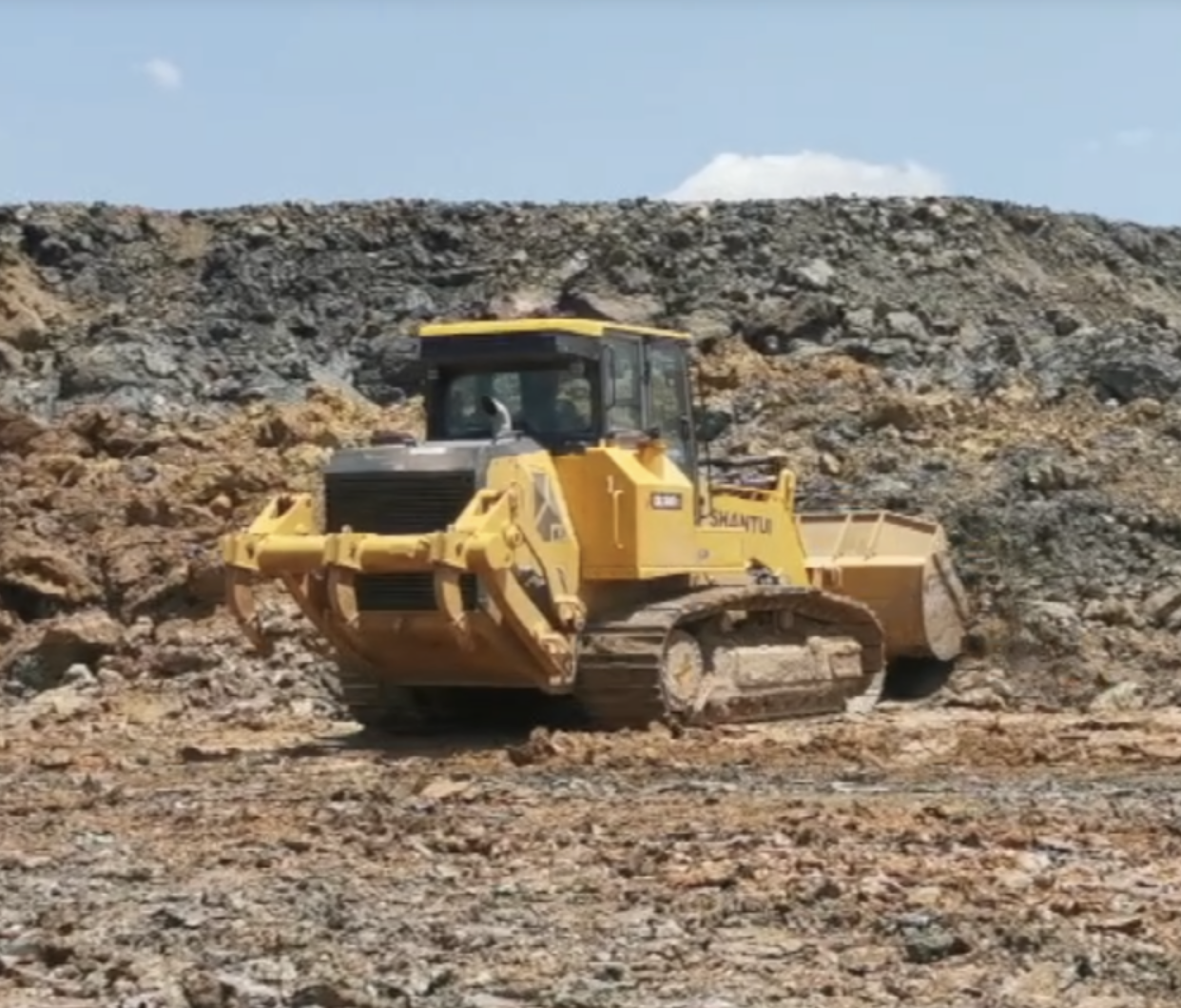

DL300-G push machine:

Expert evaluation: DL300-G push machine is a new construction machinery and equipment which is newly developed by Shantui and integrates loading, migration, leveling, slope operation and other functions. It adopts Weichai WP10H four-stage emission engine with strong power and reliable performance. Double circuit static pressure drive walking transmission system, high transmission efficiency, low failure rate, to achieve in place steering, flexible; Load-sensitive variable working hydraulic system, effective control of flow pressure, accurate matching; Meet the requirements of mine, steel mill, wetland, underground space engineering and other working conditions; Wide riding space and ergonomic design, to provide a convenient and comfortable control environment.

Applicable working conditions:

Mining.    Agriculture, Forestry and Water Conservancy.     Bridges.       Smition.      Port docks.

Quarrying with concrete.       Urban construction

Engine power: 228W/1900 to meet national IV emissions

Machine weight: 29700kg

Engine model: W10H




Description

Performance parameter

Product DL300-G (Country IV) DL300-G SU
Engine
Engine model WP10H WP10H
Engine power
Total engine power rating (kW/rpm) 228/1900 228/1900
Overall dimensions
Width of the whole machine (without bucket) (mm)
2820

3580
Overall height (to top of cab) (mm) 3510 3790
Whole machine length (mm) 7345 8325
Chassis system
Track type Lubricated track Lubricate the track
Track plate width (mm) 660 (standard) /830 560
Track center distance (mm) 2160 2160
Grounding length (mm) 2945 2945
Number of support wheels/sides 7 (3 singles and 4 pairs) 7 (3 singles and 4 pairs)
Number of brackets/sides 2 2
Ground specific pressure (kPa) 75 98.6
Hydraulic system
Working system rated pressure (MPa) 26 26
Control form Hydraulic pilot control Hydraulic pilot control
Three (s) 10.6 10.6
Drive system
Walking speed
Forward (km/h) 0-11 0-11
Back (km/h) 0-11 0-11
Steering Hydraulic motor differential steering, in-place steering, steering with load Hydraulic motor differential steering, in place steering, steering with load
Braking Normally closed brake Normally closed brake
Working device (standard)
Discharge height (mm) 3275 4018
Unload Angle (9) 45 --
Discharge distance (mm) 1193 1683
Shipping position height (mm) 483
Dipper
Bucket capacity (m3) 32 5
Soil ripper (optional)
Ripper type Three-toothed ripper --
Maximum ripper depth (mm) 397 --
Ripper width (mm) 2190 --
Weight
Working mass (kg) 29700 30831


Strong power system
• Based on the loading, migration, leveling and digging operation characteristics of the pusher, the power matching control strategy of the composite action under high traction is developed to meet the requirements of the composite action such as digging and loading, and achieve the optimal efficiency, economy and experience.

Intelligent hydraulic system
On the one hand, the high efficiency interval of the static transmission system is matched with the rated working condition of the whole
• machine to improve the transmission system as much as possible
Efficiency;
• On the other hand, the control system always adjusts the displacement of hydraulic components in real time according to the load to reduce the fluctuation of engine speed caused by the load change, thus reducing fuel consumption.

Reliable structural component
Through the application of FAE technology, the structural strength of large structural parts such as the main frame, truck and working device is simulated and verified, and through the appropriate "margin" reserve, to ensure that they are always reliable, and the key components are all subjected to rigorous experimental testing before installation.

Comfortable ride system
New tetrahedral structure cab, comfortable and convenient operation.

A variety of working equipment
, One machine can complete all tasks on the job site such as loading, moving, leveling and digging.
