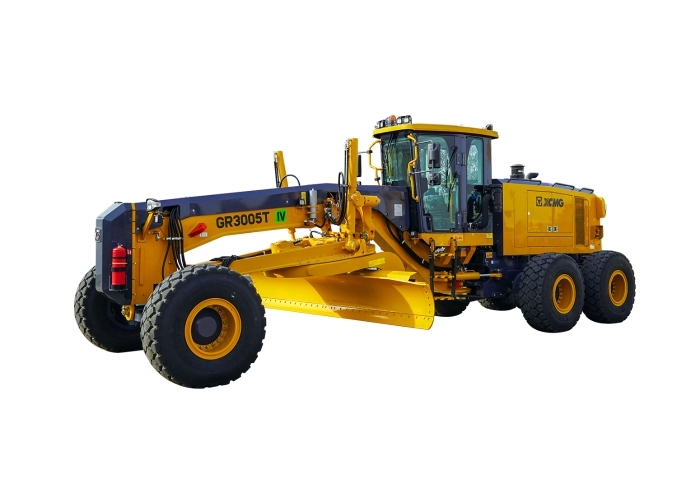

GR3005TIV

The GR3005TIV grader has high structural strength and sufficient power, and is a large mining grader specifically designed for heavy-duty conditions such as open-pit mining road construction and original terrain repair. It can perform heavy load work such as road shaping, road maintenance, and rock cleaning. This machine can adapt to extreme usage environments, with a strong power system, heavy-duty mining drive rear axle, and a gearbox with a hydraulic shortener. Coupled with a load sensing hydraulic system and a sturdy operating device, it achieves super strong operational capabilities. It adopts electronic control dual handle control, and the operation status of the whole machine can be monitored. Key parts of the fault are set with graded alarms, achieving simple, comfortable, and intelligent operation; Convenient centralized maintenance and repair arrangements, with a greater emphasis on the coordination of human-machine, safety, and environment.
Description
  • Strong and efficient construction performance, optimized overall weight and power matching, providing strong traction output, can easily cope with sudden short-term load surges;
  • Comfortable and intelligent control experience,. Equipped with electronic dual handle control and intelligent panel control, significantly reducing the intensity of driver control;
  • Durable structural design, equipped with mining heavy-duty drive rear axle, integral angle adjuster, high-strength slewing support and overload protection worm gear box, improving
  • Improve the durability of the entire machine;
  • Convenient and centralized maintenance, daily filter element and oil replacement are convenient and centralized, and the entire vehicle is equipped with an intelligent monitoring and fault diagnosis system;
  • Solid and sufficient safety protection, equipped with wet braking, hydraulic locking, ground circuit breaker, dual emergency stop control, reverse imaging and other systems, to ensure the safe use of equipment.



Project Unit GR3005TIV
Engine model - L9
Rated power/speed kW/rpm 242/2100
Forward speed km/h 5、8、11、19、23、40
Reverse speed  km/h 5、11、23
Minimum turning radius m 9
Blade length X chord height mm 4572X686
Machine overall size  mm 11026X3270X3850
Overall weight 标配/kg 28500
