VMO4E

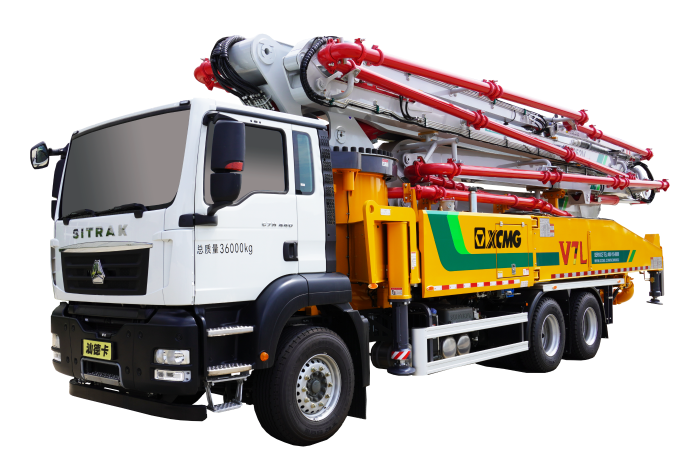

Project | Unit | HB52V (Shandeka) |
---|---|---|
Complete machine | - | / |
External dimensions | mm | 13000x2540x4000 |
Overall weight | kg | 36000 |
Chassis | - | / |
Brand | - | Shandeka Sitrak |
Model | - | ZZ5366V524MF1 |
Wheelbase | mm | 4800+1400/5600+1400 |
Engine | - | / |
Engine model | - | MC11.44-60/MC11.46-61 |
Maximum net power | kw | 324/338 |
Pumping system | - | / |
Theoretical conveying capacity | m³/h | 180 |
Pumped concrete pressure | MPa | 10.2 |
Theoretical pumping frequency | Times/min | 25-28 |
Inner diameter of conveying cylinder x stroke | mm | φ260x2000 |
Fabric rod | - | / |
The fabric rod can reach a height of | m | 51.2 |
The fabric rod can reach a depth of | m | 36.1 |
Turning radius of fabric rod | m | 46 |
Rotation angle of fabric rod | ° | ±360 |
Other | - | / |
Leg type | - | Curved legs |
