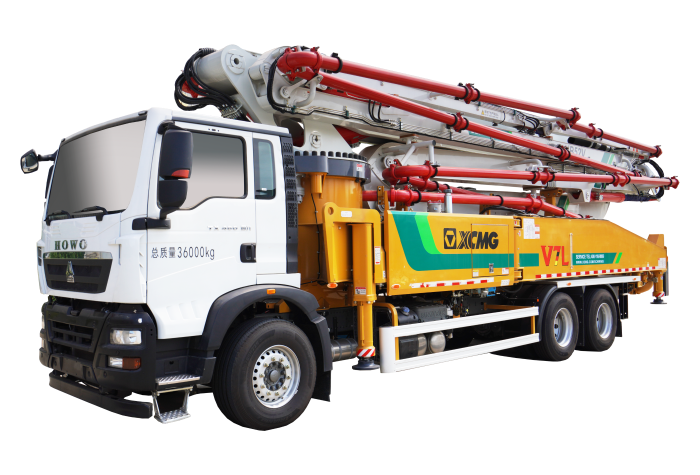

HB52V(Howo)

Stability: After 6 years of 300000 square meters of practical verification, the new generation of micro control technology has achieved meter level movement of the arm frame and ultra stable and high-precision fabric. Energy saving: Schweiying integrates main valve and skirt valve technology, with low pressure loss, low fuel consumption, and adaptive working condition technology, resulting in lower fuel consumption. Efficient: The streamlined inner chamber of the hopper has high suction efficiency, anti accumulation protrusion, fully fitted clearance, and reduces the probability of material accumulation. Reliability: Safety controller and control strategy, ensuring system safety and reliability. High precision and efficient reversing system, with small reversing impact and long service life of vulnerable parts. Safety: Small footprint, stable support, capable of unilateral operation, and strong adaptability to the site.
Description
  • More efficient pumping
  • More reliable system
  • Stronger power
  • Adaptability improvement
  • More intelligent control
  • Smoother rotation
  • Swinging is more powerful
  • The whole machine is more lightweight
  • Safer driving
  • More diverse configurations
  • More user-friendly use
  • Easier maintenance

Project Unit  HB52V(Howo)
Complete machine - /
External dimensions mm 13000x2540x4000
Overall weight kg 36000
Chassis - /
Brand - Howo
Model - ZZ5367THBV464MF1
Wheelbase mm 5600+1400
Engine - /
Engine model - MC11.46-61
Maximum net power kw 338
Pumping system - /
Theoretical conveying capacity m³/h 180
Pumped concrete pressure MPa 10.2
Theoretical pumping frequency Times/min 25-28
Inner diameter of conveying cylinder x stroke mm φ260x2000
Fabric rod - /
The fabric rod can reach a height of m 51.2
The fabric rod can reach a depth of m 36.1
Turning radius of fabric rod m 46
Rotation angle of fabric rod ° ±360
Other - /
Leg type - X leg/curved leg
