HB60VH

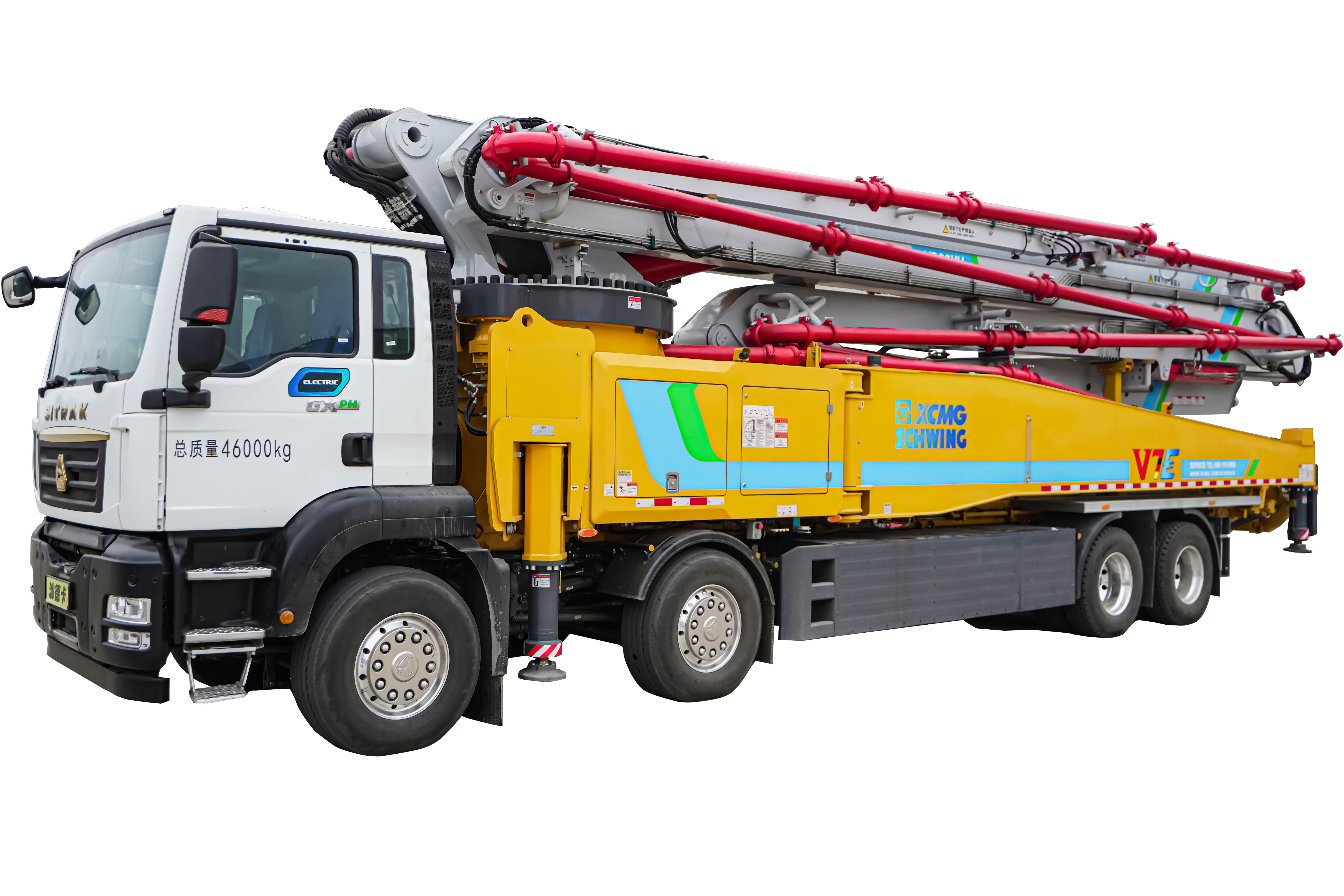

The HB60VH plug-in hybrid pump truck adopts a heavy-duty truck high-end Shandeka four axle integrated chassis, equipped with a 500 horsepower Mann engine and a 129kWH/Ah Ningde Times super large battery pack. The upper part is equipped with an international first-class brand double 190 main pump and a 240kW super large pumping motor. It can achieve free switching between fuel, hybrid, and electric modes, saving costs of over 100000 yuan per year.
Description
  • More efficient pumping
  • More reliable system
  • Stronger power
  • Adaptability improvement
  • More intelligent control
  • Smoother rotation
  • Swinging is more powerful
  • The whole machine is more lightweight
  • Safer driving
  • More diverse configurations
  • More user-friendly use
  • Easier maintenance

Project Unit HB60VH
Complete machine - /
External dimensions mm 14805x2550x4000
Chassis - /
Brand - Shandeka Sitrak
Model - ZZ5466V516MF1PHEV
Wheelbase mm 2300+5150+1400
Battery - /
Capacity kWh 128.74
Electric machinery - /
Power kW 240
Pumping system - /
Theoretical conveying capacity m³/h 180
Pumped concrete pressure MPa 10.2
Theoretical pumping frequency Times/min 25-27
Inner diameter of conveying cylinder x stroke mm φ260x2000
Fabric rod - /
The fabric rod can reach a height of m 59.1
The fabric rod can reach a depth of m 41.7
Turning radius of fabric rod m 53.9
Rotation angle of fabric rod ° ±360
Other - /
Leg type - X legs
