HB62VH

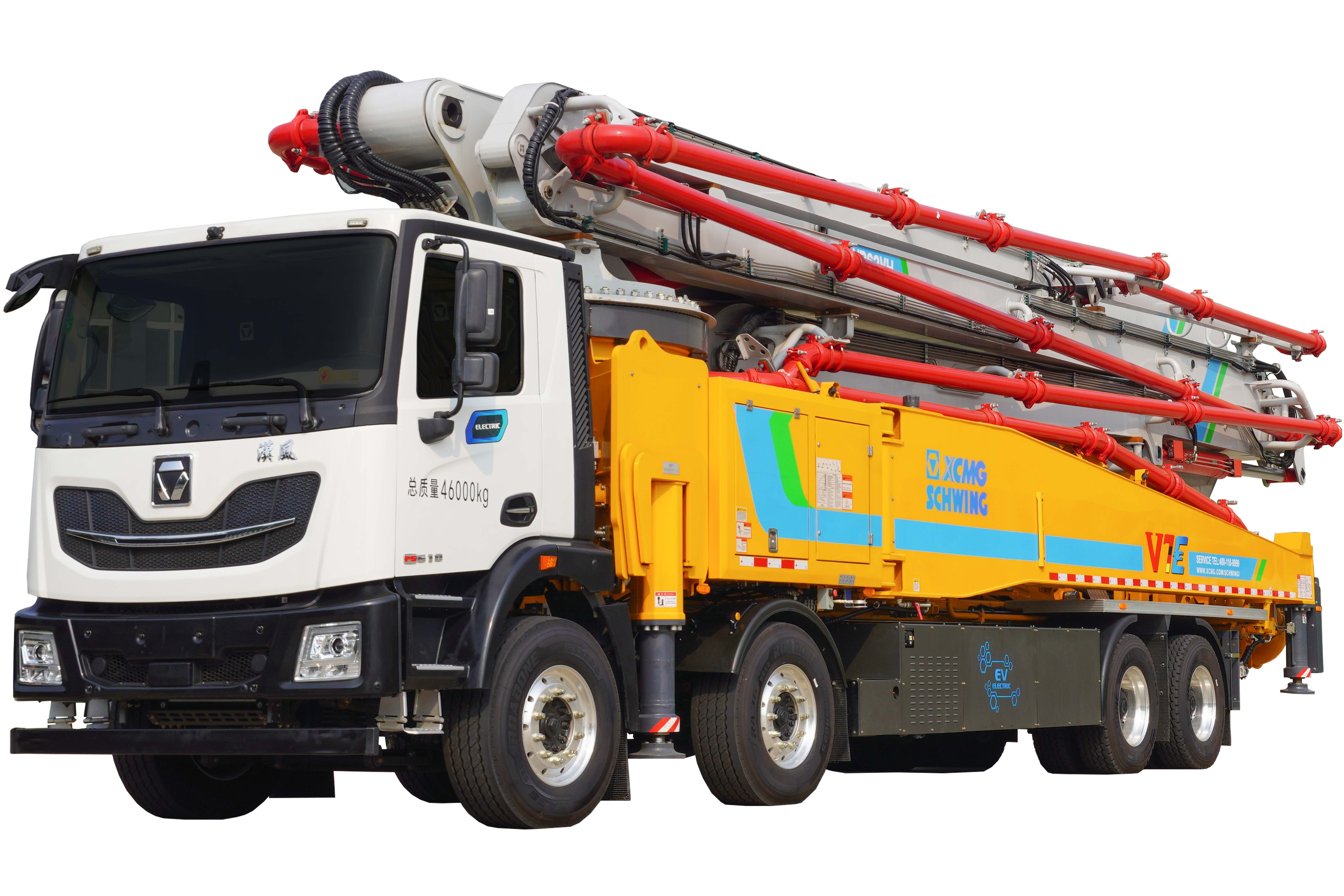

The HB62VH plug-in pump truck adopts a high-end P5 four axle integrated chassis from Xuqi, equipped with a 500 horsepower engine and a 79kWH/Ah CATL battery pack. It comes with an onboard charger and can be connected to an external 380V industrial power supply. The upper part is equipped with the international first-class brand Double 190 main series and a 240kW super large pumping motor, with industry-leading pumping capacity. It can achieve free switching between fuel, hybrid, and electric modes, and also has energy recovery function, saving costs of over 100000 yuan per year.
Description
  • More efficient pumping
  • More reliable system
  • Stronger power
  • Adaptability improvement
  • More intelligent control
  • Smoother rotation
  • Swinging is more powerful
  • The whole machine is more lightweight
  • Safer driving
  • More diverse configurations
  • More user-friendly use
  • Easier maintenance

Project Unit HB62VH
Complete machine - /
External dimensions mm 15050x2550x4000
Chassis - /
Brand - XCMG
Model - XGA5460THBPHEVWEX
Wheelbase mm 2300+5150+1400
Battery - /
Capacity kWh 79.7
Electric machinery - /
Power kW 240
Pumping system - /
Theoretical conveying capacity m³/h 180
Pumped concrete pressure MPa 10.2
Theoretical pumping frequency Times/min 25-27
Inner diameter of conveying cylinder x stroke mm φ260x2000
Fabric rod - /
The fabric rod can reach a height of m 61.1
The fabric rod can reach a depth of m 42.5
Turning radius of fabric rod m 55.9
Rotation angle of fabric rod ° ±360
Other - /
Leg type - X legs
