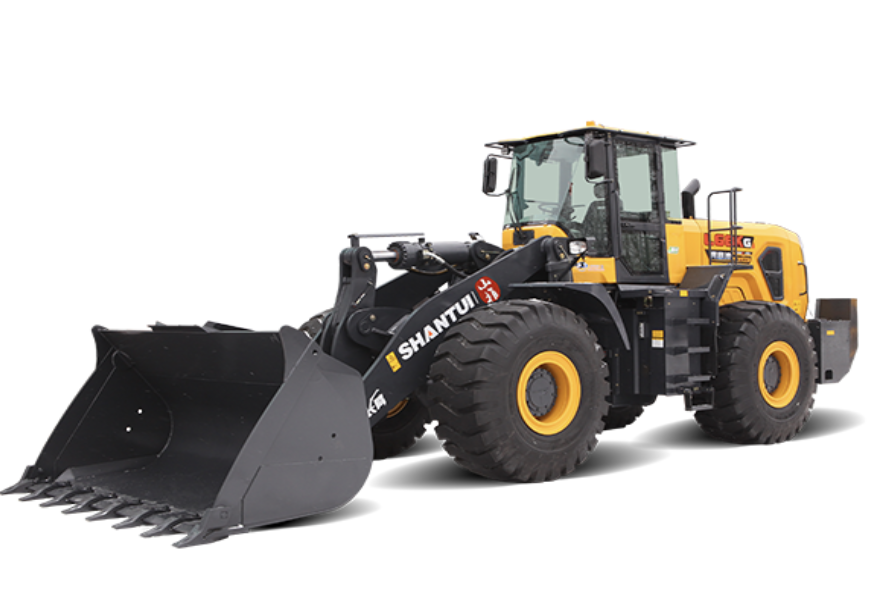

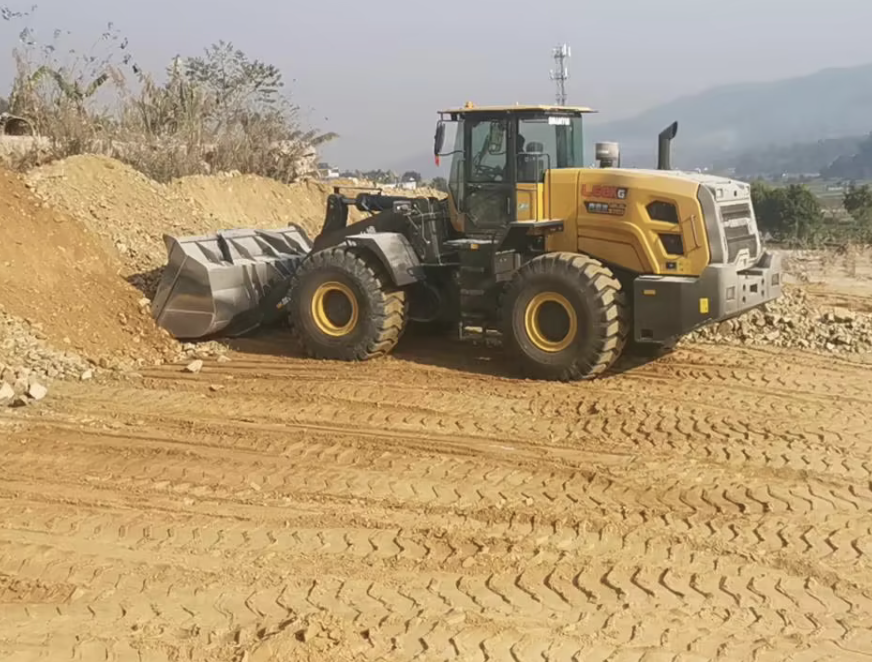

L68K-G loader

168K-G Loader expert assessment:
L68K-G loader is based on the development of Shantui country four platforms in line with the national off-road four stage emission standards of the product, rated load of 6.5 tons, the use of a new matching power transmission system, transmission efficiency, reliable, integrated cab operation space is larger and more comfortable, mold molding hood appearance fashion, atmosphere, flow amplification steering hydraulic system, steering light, widely used Used in ports, coal mines, sand mills and other places.

Working quality/rated load: 23100kg/6500kg
Bucket capacity: 4m3 (3.5-6) m3
Power/speed: 192kW/2100rpm

Applicable working conditions:
mining
Port terminal
Quarrying and concrete
Urban construction
aerodrome
Description
Technical characteristics
Dynamic system
Shantui loaders special low-speed high-torque Weichai engine, using the latest WP10H platform, advanced and reliable, strong power, efficient fuel saving, quiet and comfortable, intelligent environmental protection, compared with the WP10 platform engine fuel consumption reduced by 10%;
Set no-load, medium-load, heavy-load three-level power control mode to meet the needs of different working conditions, low comprehensive fuel consumption;
Water level alarm function, reminding users to waterproof in time to further improve the reliability of the whole machine;
The 330L large capacity diesel tank is placed behind to meet the needs of continuous operation, and the stability of the whole machine is greatly improved.




Transmission system
Tailor-made for the mountain push loader, specially designed planetary transmission, fast speed, tractive force up to 205KN, comprehensive operation efficiency increased by more than 15%;
Enhanced drive axle, strong bearing capacity, swinging rear axle, can adapt to a variety of harsh conditions of the whole machine stability, front axle for six brake calipers, braking torque, safety greatly improved;
Through the perfect match with the engine, torque converter, drive shaft, drive axle, achieve the maximum working efficiency, good acceleration performance, fast speed;
Combined working conditions (walking and action at the same time) large traction and lifting force, strong explosive force, high working efficiency.

Structural member
The use of reinforced structure front and rear frame, high strength, long life; Wheelbase up to 3500mm, more stable operation.

The large open gear articulated structure has the advantages of stress dispersion, easy maintenance and strong load resistance. Double tapered roller bearings are adopted for both upper and lower hinged joints, which has greater load bearing capacity and is more suitable for harsh working conditions.

Articulated alignment design, the front and rear tire movement track is the same, reduce steering resistance, reduce energy consumption and extend tire life;

Optimized design of efficient connecting rod mechanism, fast action, large digging force, up to 205KN, strong lifting ability; High strength design of the working device, pin increase, eliminate local weakness, ensure to meet all kinds of harsh working conditions;

Rich working device configuration, can meet the needs of various working conditions. Bucket strengthening and modification, greatly improve the full bucket rate. work

Electrical system
Intelligent and reliable new step digital combined instrument, easy to read vehicle information, timely and accurate real-time vehicle information, to achieve fault self-test and alarm, to ensure the efficient and safe operation of the host;

Independent bending column, more comfortable operation; The integrated relay box and safety box are easy to repair and have more reliable performance. Variable speed control two forward one back, working device control can be selected mechanical or pilot type;

Chinese voice alarm, gas horn, improve safety (more suitable for vehicles, crowded places);

LED front and rear working lights, strong light, long life, LED reading lights in the cab, entertainment sound system.

Maintenance convenience
The air storage cylinder is placed on the right side of the ladder, and the drainage is simple and convenient;
The pin filling butter can be completed by standing on the ground;
The whole system adopts large opening side shield, large maintenance space, smooth and convenient maintenance channel;
Air filter, wood filter, machine filter, transmission fine filter is within reach, but also with fuel level alarm function, to remind the driver of daily water maintenance, protect the engine.
