Performance parameters |
|
Parameter name |

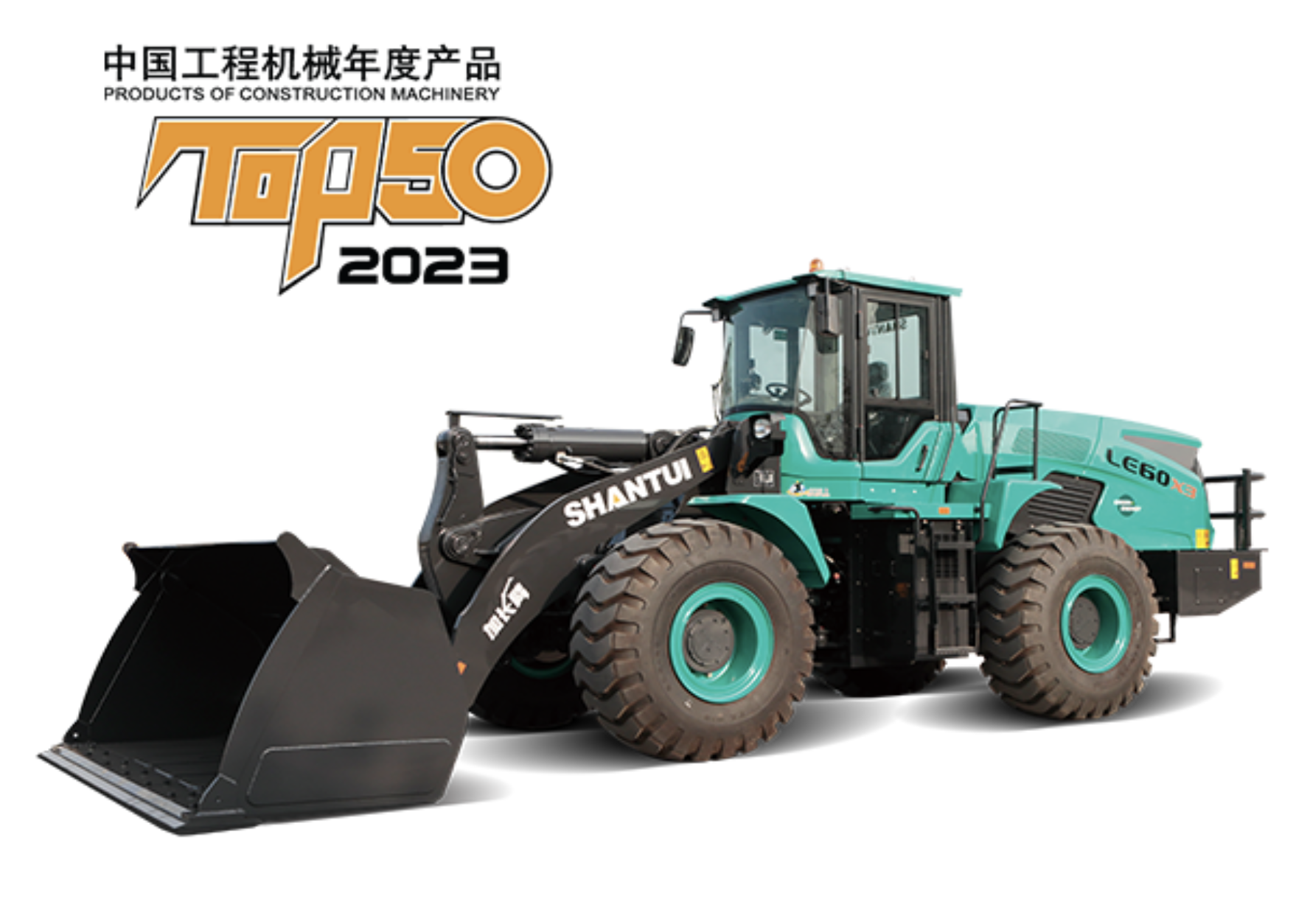

LE60-X3 CH |
Performance parameters |
|
Quality of work (kg) |
18500(282kwh)/19400(350kwh) |
Maximum unloading height (mm) |
3220 |
Unloading distance (mm) |
1380 |
Maximum excavation force (kN) |
185 |
Triathlon and (s) |
9.5 |
Motor model |
TZ380XSST100A |
Walking motor power (kW) |
100/200 |
External dimensions |
|
Overall dimensions of the whole machine (mm) |
9160*3020*3440 |
Walking performance |
|
Forward speed (km/h) |
0-33 |
Backward speed (km/h) |
0-33 |
Chassis system |
|
Wheelbase (mm) |
3400 |
Battery capacity (kwh) |
282/350 |
Rated bucket capacity (m³) |
4-5 |
Rated load capacity(t) |
5.8 |
|
|
Power battery system
The whole machine adopts a large-capacity high-performance lithium iron phosphate power battery pack, which has strong power and reliable performance. There are two battery versions of 282kwh and 350kwh to meet the different endurance needs of users. The power battery is equipped with a standard dual-gun fast charging interface, which can match the general charging pile of electric vehicles of different power. The cost of the whole machine is about 106 yuan per hour lower than that of the same tonnage fuel vehicle. According to 3,000 hours a year, it can save 328,000 yuan per year. The more you really use it, the more you save.
Transmission system
The whole machine is matched with Shantui's independent research and development of a 2-speed electric-controlled gearbox for pure electric loader. The shift response is fast, and the transmission efficiency is increased by 8%: the high-torque walking motor directly drives the gearbox, cancels the torque converter, and the transmission efficiency is increased by 20%; it is matched with Shantui's self-made reinforced drive axle, with strong bearing capacity and more suitable for heavy-duty working conditions. The walking motor can achieve stepless adjustment from zero speed to the highest speed, and the whole machine starts smoothly and the impact is small.
Driving environment
The whole machine adopts an integrated fully sealed cab, noise reduction, dustproof, heat insulation, wide field of vision, high-performance seats, heating and cold and air conditioning, reversing images, LED headlights, etc. The driving environment is warm in winter and cool in summer: the operation of the working device adopts electro-hydraulic proportional control, with smaller control and higher comfort; the control handle integrates the horn, FNR and gear switching function, which is more convenient to operate at the fingertip.
Structural parts
The whole machine adopts a new working device platform, optimizes the design of the connecting rod mechanism, fast movement, large digging force, strong improvement ability: high-strength design of the working device, CAE optimization analysis, elimination of local weakness, to ensure that all kinds of harsh working conditions are met, and the working device is rich in configuration, which can meet the needs of various special working conditions.
Maintenance convenience
The whole machine gearbox refueling port and butter lubrication port lead-out design, the power battery and radiator water tank are centrally arranged, and the machine cover is opened electricly with one click, which is convenient for daily maintenance;
