Expert assessment:

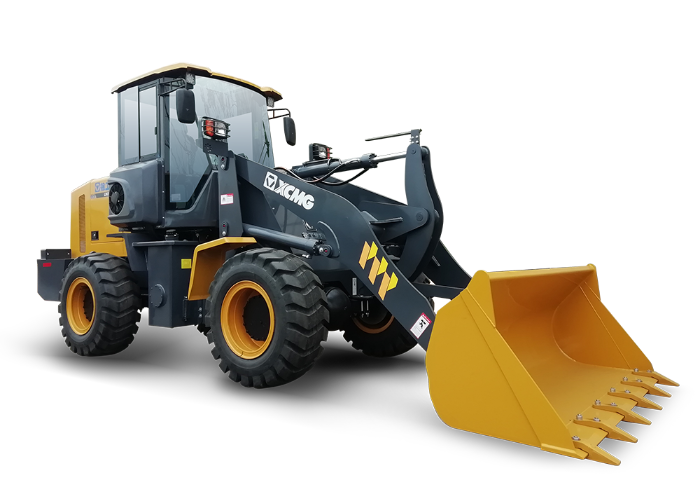

LW180FM is a four-stage product independently developed by Xugong Group, equipped with electronically controlled high-pressure common rail country Four 4102 engine, high-quality split dual variable, four-wheel drive, full hydraulic steering, strong power, higher efficiency, better environmental adaptability. A variety of working devices and auxiliary machinery can be selected to achieve multiple capabilities of one machine, which is widely used in loading, traction, lifting and transportation operations in infrastructure, sanitation, farmland, road renovation, ports, freight yards and other places.


Working quality of the whole machine (kg)5300-5600
Rated bucket capacity (m3)1
Rated working load (kg)1200-1800
Description
Product introduction
Performance features:
1. Long wheelbase (2350mm) design, adapt to a variety of overweight conditions, the stability of the industry is better.
2. Strong shovel digging (lifting force 244KN), strong breaking force, a variety of materials with light weight.
3. Fast and efficient, driving speed up to 22km/h, the industry is better.
4, more than 3 meters unloading height, to meet the needs of a variety of occasions.

Model features:
1. Yunnei 4102 self-absorption four-stage engine, more powerful, higher efficiency, electronically controlled high pressure common rail technology really achieve fuel saving and consumption reduction.
2. Enhanced heavy-duty drive axle to meet the needs of high-strength and high-load operations.
3. Domestic first-line brand engineering tires, high rubber content, reliable wear resistance, adapt to a variety of harsh conditions, efficient operation.
4. CAE simulation, the working device meets the heavy load condition; Proprietary bucket type, insert pile more labor-saving; Use wear-resistant materials to improve working life.
5. Pipe line concentration, reasonable direction; Double seal, leak proof more reliable.
6. Double side doors open the hood at a large Angle, with wide vision, comfortable operation and convenient maintenance in large space.
7, can be selected 3 meters, 4 meters height unloading device, as well as a variety of machines to meet different working conditions.
