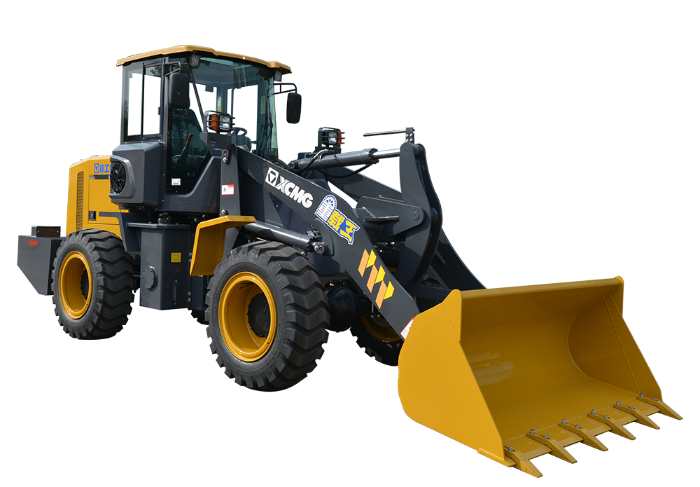

LW230FM Heavy duty King [Country 4]FM series

LW230FM Heavy duty King [Country 4]FM series
Expert assessment:
LW230FM is a four-stage product independently developed by Xugong Group, equipped with Luotow and cloud supercharged four-stage engines, high-quality split dual variable, four-wheel drive, full hydraulic steering, strong power, higher efficiency, and stronger environmental adaptability. A variety of working devices and auxiliary machinery can be selected to achieve multiple capabilities of one machine, which is widely used in loading, traction, lifting and transportation operations in infrastructure, sanitation, farmland, road renovation, ports, freight yards and other places.

Working mass (kg)6490-6750
Rated bucket capacity (m3)1.2
Rated working load (kg)1800-2300
Description
Product introduction
Performance features:
1. Long wheelbase (2680mm) design, adapt to a variety of overweight conditions, the stability of the industry is better.
2. Powerful shovel (lifting force 250KN), strong breaking force, a variety of materials with light weight.
3. Fast and efficient, driving speed up to 28km/h, the industry is better.
4. According to different working conditions, the unloading height of 3 meters to 4 meters can be selected.

Model features:
1, Luotow and cloud pressurized four-stage engine, more powerful, higher efficiency, electronically controlled high pressure common rail technology really achieve fuel saving and consumption reduction.
2. XCMG enhanced heavy-duty drive axle to meet the needs of high-strength and high-load operations.
3. Domestic first-line brand engineering tires, high rubber content, reliable wear resistance, adapt to a variety of harsh conditions, efficient operation. 4. CAE simulation, the working device meets the heavy load condition; Proprietary bucket type, large bucket ruler, insert material pile more labor-saving; Use wear-resistant materials to improve working life.
5, pipe line concentration, reasonable direction; Double seal, leak proof more reliable.
6. Double side doors open the hood at a large Angle, wide vision, large space operation comfort, convenient maintenance.
7. Optional 3m, 3.5m, 4m height unloading device, as well as a variety of machines to meet different working conditions.
