| Performance parameters |
| Parameter name |

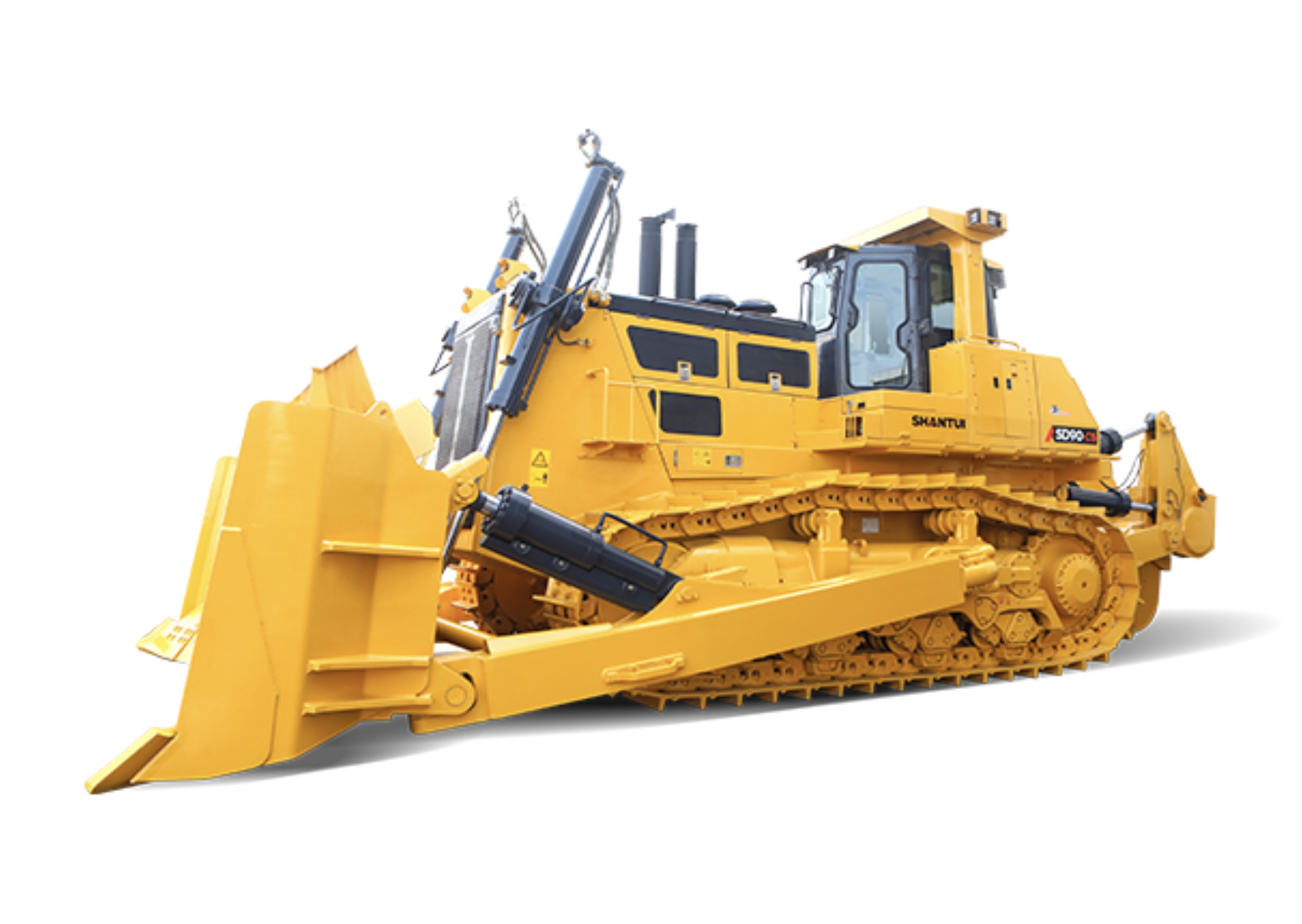

SD90-C5 RS |
| Performance parameters |
|
| Quality of work (kg) |
106260 |
| Grounding specific pressure (kPa) |
143.7 |
| Engine |
|
| Engine model |
QST30 |
| Rated power/rated speed (kW/rpm) |
708/2100 |
| External dimensions |
|
| Overall dimensions of the whole machine (mm) |
11500*5265*4590 |
| Walking performance |
|
| Forward speed (km/h) |
F1:0-3.5 F2:0-6.3 F3:0-10.9 |
| Regress speed (km/h) |
F1:0-4.7 F2:0-8.4 F3:0-14.3 |
| Chassis system |
|
| Track center distance (mm) |
2770 |
| Track plate width (mm) |
7101 |
| Grounding length (mm) |
4520 |
| Fuel tank capacity |
|
| Fuel tank (L) |
1750 |
| Working device |
|
| Shovel knife type |
Half U |
| Depth of shoveling (mm) |
1010 |
| Pine earthenware type |
Single tooth |
| Soil depth (mm). |
1670 |
| Shovel lift height (mm) |
|
· Electronicly controlled engine, meet the national non-road machinery river stage emission requirements, high reliability
· suction temperature control fan, with reverse self-cleaning function, high efficiency and energy saving.
Transmission system
· Adopting a hydraulic torque converter with locking function, the output torque can change with the load, strong load adaptability, hydraulic transmission at low speed, mechanical transmission at high speed, can save 10%-15% of fuel, with high fuel economy;
· normally closed brake, with parking brake function, can effectively prevent high safety of vehicle ramp slip;
Operating performance
· The walking control adopts an electronically controlled single handle device, which can realize the "hand-automatic fingertip shift" function;
· The operation of the working device adopts a pilot single handle device, which is flexible, light and comfortable, and has high reliability.
Driving environment
· Ergonomic cab, large space and good vision. The overall seal of the cab effectively blocks noise. The noise in the driver's ear is as low as 80 decibels, which meets the EU standard:
· High-power heating and cooling and heating air conditioner, good cooling effect, air conditioning air outlet layout is more user-friendly, and more comfortable to drive:
· The interior is made of rapid prototyping parts (top ABS + PVC plastic), high-end environmental protection, good driving experience.
Ability to adapt to work. Matching the heavy chassis, it can adapt to more severe working conditions and has a longer life;
· Large grounding length, large ground clearance, stable driving, good passability, can be configured with semi-U-shaped shovels and U-shaped shovels:
· The supporting wheel adopts K-type elastic suspension, the track grounding area is larger, and the work traction is greater and more stable on uneven roads!
· It is equipped with high-brightness LED working lights as standard, which improves the lighting capacity and makes night construction safer and more reliable.
Easy to maintain
Enclosed safe channel design, safer and more convenient for maintenance, the whole machine adopts modular design, convenient disassembly and installation, simple maintenance!
· The electrical wiring harness adopts seamless bellows and splitters, and the protection level of high-core electrical and hydraulic components is purchased globally, with high reliability.
