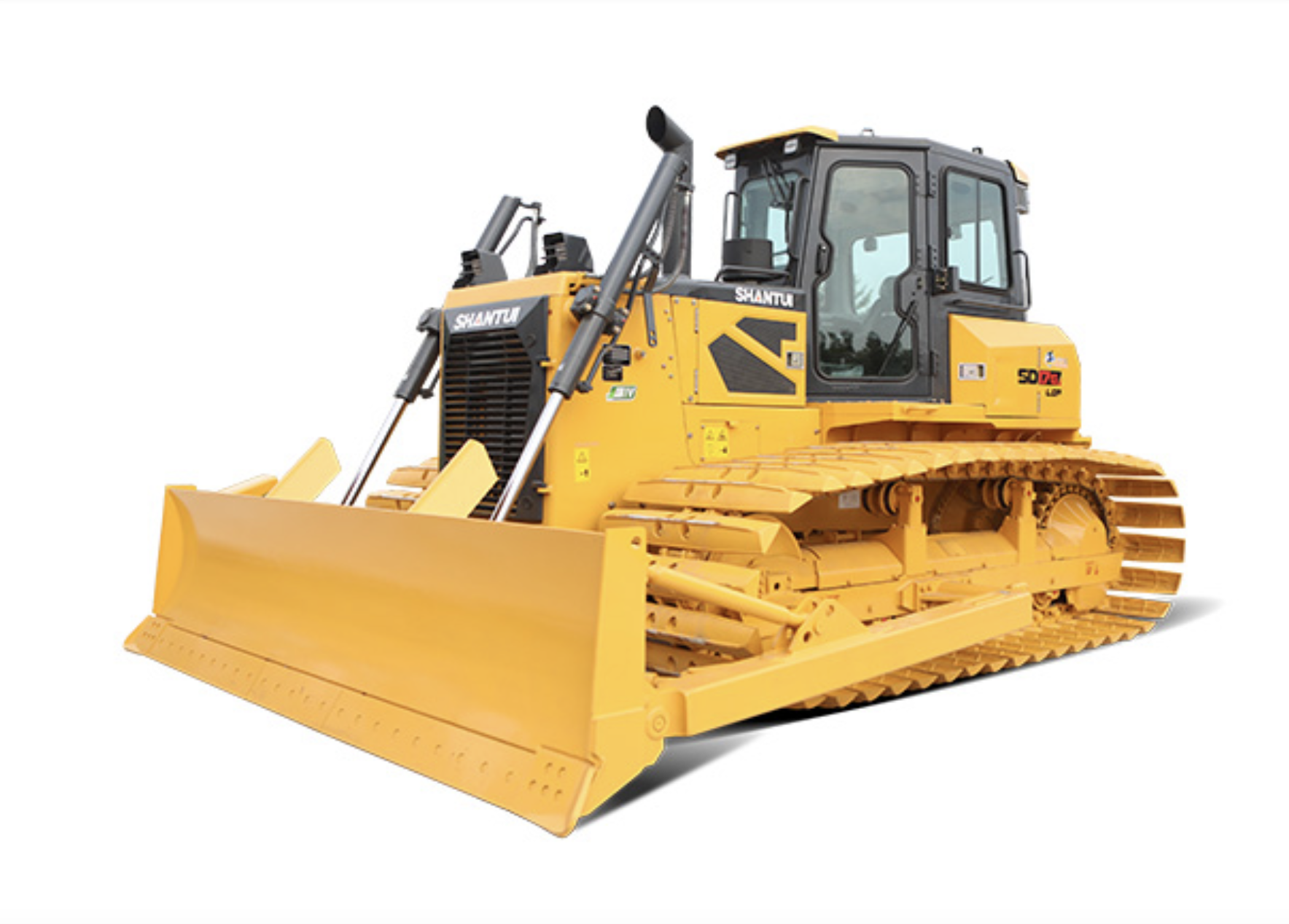

Parameter name |
SD17-XL |
SD17-G CH |
SD17-LGP |
SD17-G WH |
SD17-G DS |
|
Extended version |
Coal version |
Super wetland version |
Sanitation version |
Desert version |
Performance parameter |
|
|
|
|
|
Quality of work(kg) |
17120Accessory traction frame |
17620Accessory traction frame |
19360 |
19790 |
1873 |
Grounding specific pressure: (kPa)
|
54 |
49 |
27 |
27 |
35 |
Engine |
|
|
|
|
|
Engine model |
WP9H |
WP9H |
WP9H |
WP9H |
WP9H |
Rated power/rated speed (kW/rpm) |
140/1900 |
140/1900 |
140/1900 |
140/1900 |
140/1900 |
External dimensions |
|
|
|
|
|
Dimensions of the whole machine(mm) |
5450*3452*3200
|
5950*3905*3200
|
5500*4230*3240
|
5500*4230*3240 |
5500*4230*3622 |
Walking performance |
|
|
|
|
|
Forward speed(km/h) |
F1:0-3.5,F2:0-6
2,F3:0-10.6
|
F1:0-3.5,F2:0-6. 2,F3:0-10.6 |
F1:0-3.5,F2:0-6. 2,F3:0-10.6 |
F1:0-3.5,F2:0-6. 2,F3:0-10.6 |
F1:0-3.5,F2:0-6. 2,F3:0-10.6 |
Astern speed (km/h) |
R1:0-4.5,R2:0-8. 0,R3:0-13.1 |
R1:0-4.5,R2:0-8. 0,F R3:0-13.1 |
R1:0-4.5,R2:0-8. 0,R3:0-13.1 |
R1:0-4.5,R2:0-8. 0,R3:0-13.1 |
R1:0-4.5,R2:0-8. 0,R3:0-13.1 |
Chassis system |
|
|
|
|
|
Track center distance (mm) |
1880 |
1880 |
2300 |
2300 |
2300 |
Track plate width (m m) |
510(560/610) |
610
|
1100(950)
|
1100(950/660)
|
810 |
Grounding length (mm) |
2635 |
2635 |
2635 |
2635 |
2635 |
Fuel tank capacity |
|
|
|
|
|
Fuel tank(L) |
345 |
345 |
345 |
345 |
345 |
Working hydraulic fuel tank(L) |
75 |
75 |
75 |
75 |
75 |
Working device |
|
|
|
|
|
Shovel knife type |
Straight tipping shovel (half U shovel) |
Push coal shovel |
Straight tipping shovel |
Sanitation shovel |
Straight tipping shovel |
Depth of shoveling (mm) |
540 |
540 |
485 |
485 |
485 |
Pine earthenware type |
tridentate |
tridentate |
-- |
-- |
-- |
Soil depth (mm) |
460 |
460 |
-- |
-- |
-- |
Power system
Weichai WP9H electronically controlled engine is intelligent and efficient to meet the four-stage emission requirements of national non-road machinery, and the comprehensive fuel consumption rate is low: the whole machine is matched with a three-power operation mode, with a light load of 120kW, a medium load of 131kW and a heavy load of 140kW. According to the actual load requirements, one-click switching, fuel saving and power are under your control.
Transmission system
The transmission system is common to the SD16 bulldozer. It has been tested by the market. The core components of torque converter, gearbox, central transmission and final transmission are all self-made: · Hydraulic torque converter is carefully matched, and the most efficient in the industry.
Control system
· The walking system adopts single-handle electro-hydraulic control, integrating variable speed, direction change and steering. The control is simple, and the control force is reduced by 77%; · The gear preset can be carried out according to the working conditions, F1/R1 and F1/R2 are available for you to choose, which are more efficient and intelligent; · The working device adopts pilot control, accurate control, good micro-motion, and easy to operate: · Eight-inch LCD display, integrated reversing image.
Driving environment
The new type of increased positive pressure cab, high-end luxury interior, integrating anti-rolling and anti-falling functions, safe and comfortable: ultra-wide-angle vision in the cab, industry leading: standard integrated rear air conditioning, top air duct design, standard new air! Both sides of the seat are equipped with wide and thick armrests, which are independently supported and adjustable; the standard Bluetooth radio, USB interface, storage box, tea cup seat, ashtray and sunshade curtain allow you to enjoy your work.
Ability to adapt to work
The chassis system is self-made, and the four-wheel area is exported overseas, and the service life is higher than that of competitors. The chassis system has a long grounding length and stable driving: · According to the working conditions, it can be configured with direct tilting shovel, semi-U shovel, U-shaped shovel, coal shovel, sanitation shovel, angle shovel, traction frame, earth loosening device, etc. It is equipped with 6 LED work lights as standard to improve the construction lighting capacity at night; the fuel tank volume is increased to 345L, and the endurance is increased by 15%. .
Easy to maintain
Fuel system three-stage filtration, centralized arrangement of filter element, convenient maintenance of engine fan shaft, water pump bearing lubrication, maintenance-free, balanced beam lubrication point out, convenient maintenance, · Full-open side shield, super-large maintenance space, external working valve, convenient maintenance variable speed, steering filter element centralized layout, easy maintenance, can save 60% of maintenance time lubrication and maintenance table at a glance, to help you scientific maintenance without pressure.
