VMO4E

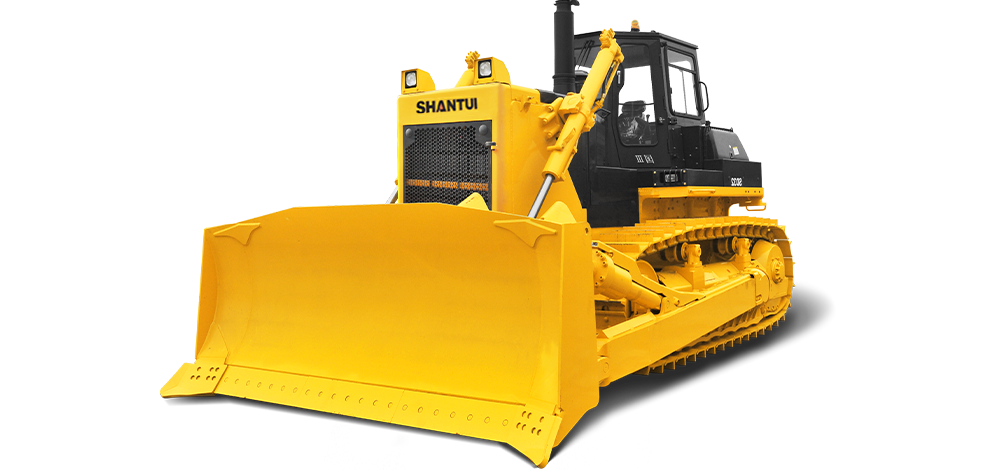

| Parameter | SD32 |
|---|---|
| Overall weight(kg) | 39700 |
| Engine brand | Cummins |
| Rated power/rated speed(kW/rpm) | 257/2000 |
| Machine extemal dimensions(mm) | 8650*4502*3760 |
| Track center distance(mm) | 2140 |
| Track shoe width(mm) | 560/610/660/710 |
| Ground contact length(mm) | 3150 |
| Fuel tank capacity(L) | 640 |
| Blade type | Straight tilting blade , Angle Blade and Semi-U blade |
| Blade capacity(m³) | 7.2/4.8/9 |
| Emissions (Indicated as per intemational standards) | Eu stage Ⅱ |
