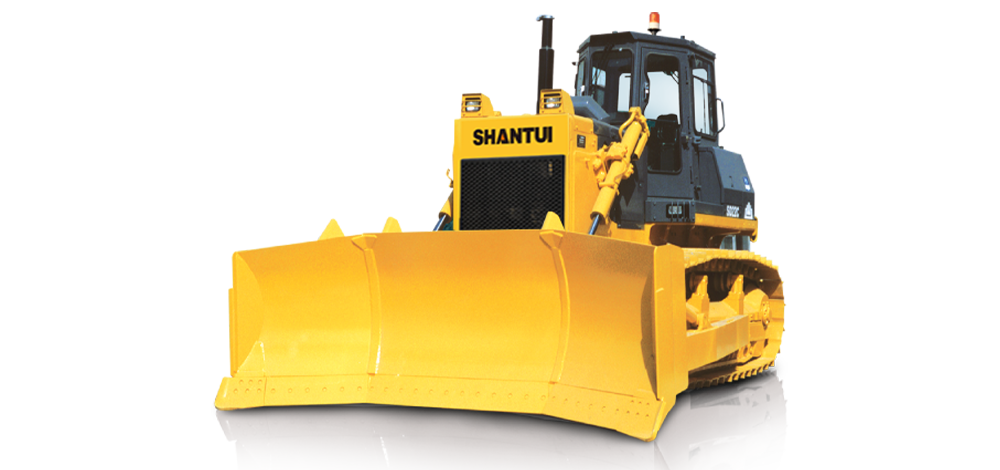

SD32C

  • Configuration Selling Point
Equipped with the dedicated engine and paired with Shantui's self-developed transmission, along with the durable and reliable Shantui chassissystem,the machine demonstrates greater traction and enhancedoperational efficiency;
  • Ease OfMaintenanceAnd 0peration Corfort
The openable side guard offers a spacious area and the reasonable layoutof filter elements and hydraulic components facilitate convenientmaintenance. The hexahedral cab provides a more spacious interior andwider field of wiew.
  • Adaptability To DverseWorking Conditions
Featuring a large chassis ground clearance and an anti-entanglementdevice, the machine delivers outstanding passability. it is equipped with asanitation blade and provides the option for a ripper. The cab is well-sealed.ensuring its suitability for sanitation working conditions.
Description


Parameter SD32C
Overall weight(kg) 34500
Engine brand Cummins
Rated power/rated speed(kW/rpm) 257/2000
Machine extemal dimensions(mm) 8650*4806*3760
Track center distance(mm) 2140
Track shoe width(mm) 560/610/660/710
Ground contact length(mm) 3150
Fuel tank capacity(L) 640
Blade type coal U-blade
Blade capacity(m³) 12.1
Emissions (Indicated as per intemational standards) Eu stage Ⅱ
