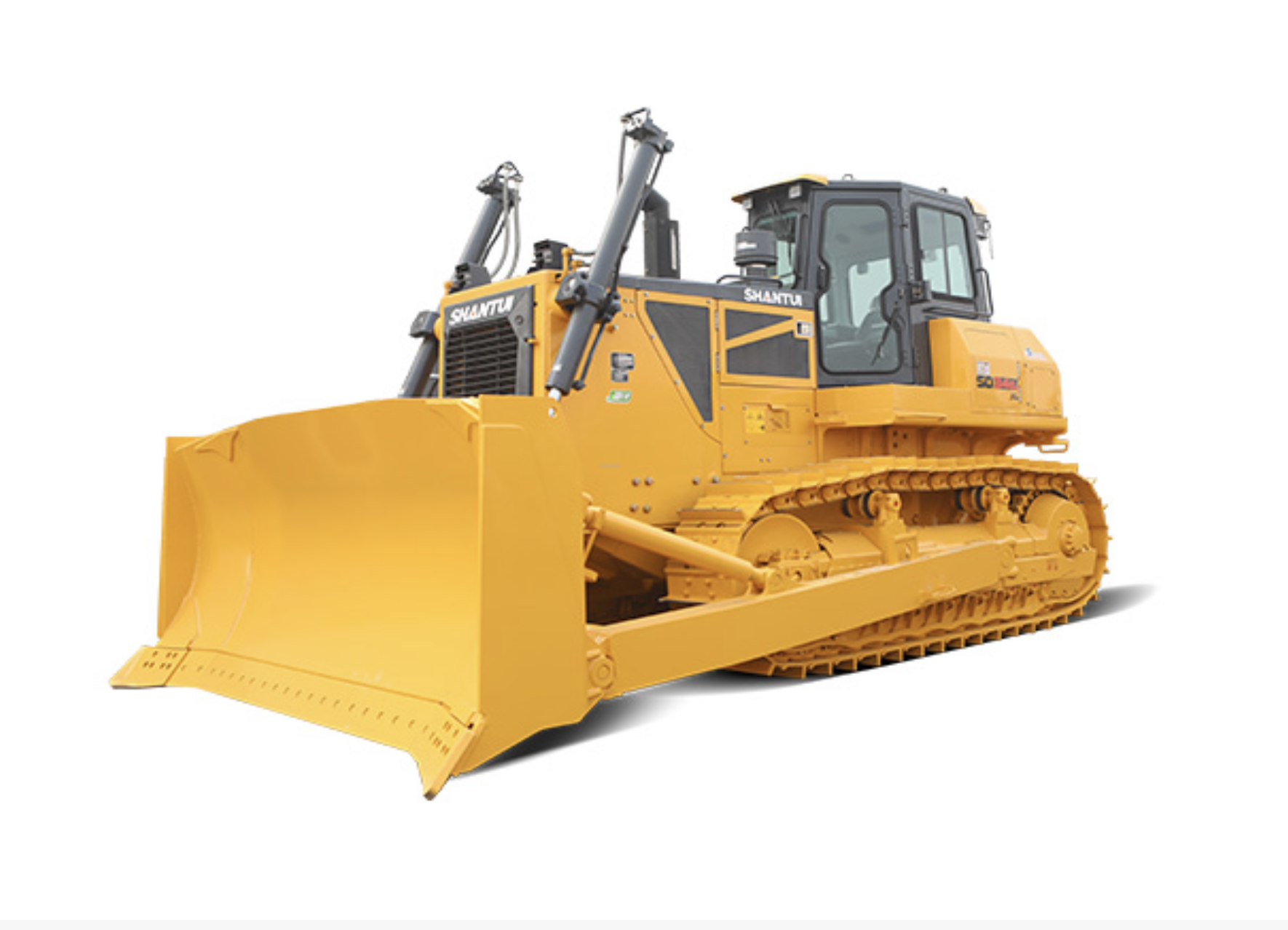

SD34-G

Expert evaluation: SD34-G hydraulic bulldozer has the characteristics of strong power, low fuel consumption, flexible control, comfortable driving and riding, high production efficiency and high reliability. It is suitable for the operation of highways, railways, mines, airports and other ground transportation, excavation, backfill earthwork and other bulk materials. It is an indispensable mechanical equipment for national defense engineering, mine construction, urban and rural roads and other construction and water conservancy construction.

Engine power: 269kW/2000rpm to meet the national four emissions
Weight of the whole machine: 39000kg
Engine model: WP13
Description

Applicable working conditions:
Mining Collaborative Group products, Shantui has a full range of mine enhanced products suitable for mining conditions. From mining and installation, transportation, soil drainage to mine road construction, etc., we can customize integrated equipment and technical solutions for you to effectively reduce operating costs while providing super-large loads. Our products have passed the test of extreme construction conditions. Whether your project is in Shantui products, it can complete the task well.

Agriculture, forestry and water conservancy In order to cope with the construction of modern agriculture, forestry, water conservancy and other projects, Shantui provides you with comprehensive integrated construction solutions. For a variety of business needs of different difficulties, such as farmland transformation, logging, damming, dredging and other working conditions, our flexible and reliable full range of equipment and a variety of matching equipment will become your trustworthy partner for you to complete tasks efficiently.

Quangry and concrete For a long time, Shantui has continued to pay attention to environmental protection and social sustainable development. From the mining of concrete raw materials to concrete mixing, transportation, construction waste treatment and regeneration, Shantui has integrated construction equipment and technical solutions for the whole life cycle of quarrying and concrete, which can provide technical and equipment support for the quarrying and concrete industry to achieve sustainable development.

Airport Shantui intelligent integrated construction platform and perfect road construction integrated construction equipment: pusher, grader, paver, single steel wheel, double steel wheel, tire roller, mixing station, etc. Through the use of intelligent integrated construction technology, it realizes digital site management and construction, real-time monitoring of construction progress and quality, maximizes the quality and efficiency of construction, and meets the high-precision construction requirements of the airport runway.
Performance parameters
Parameter name SD34-G(Extended version) SD34-G(Coal version) SD34-G RS (Rock version)
Performance parameters
Working quality (kg)  39000 36000 40000
 grounding ratio (kPa) 95.5 74.2 97.2
Traction performance
Engine
Engine model WP13 WP13 WP13
Rated power/rated speed(KW/rpm) 269/2000 269/2000 269/2000
Power battery system
On-board energy(KW/h)
External dimensions
Dimensions of the whole machine(mm) 9090 x4117x3650

6600x4806 x3650 9090 x4117 x3650
Walking performance
Forward speed (km/h) F1:0-3.6,F2:0-6.6,F3:0
-11.5
F1:0-3.6,F2:0-6.6,F3:0
-11.5
F1:0-3.6,F2:0-6.6,F3:0
-11.5
Backing speed(km/h) R1:0-4.4,R2:0-7.8,R3:0-1
3.5.
R1:0-4.4,R2:0-7.8,R3:0-1
3.5.
R1:0-4.4,R2:0-7.8,R3:0-1
3.5.
Chassis system
Track center distance (mm) 2140 2140 2140
Track plate width (mm) 560(660/710) 660 560
Grounding length (mm) 3150 3150 3150
Fuel tank capacity
Fuel tank (L) 620 620 620
Working hydraulic fuel tank (L) 128 128 128
Working device
Shovel knife type Straight tipping shovel (half U shovel) Push coal shovel Rock straight tipping shovel (rock semi-U shovel)
Depth of shoveling (mm) 560 560 560
Pine earthenware type Single tooth -- Single tooth
Soil depth (mm) 1250 -- 1250
Shovel lift height (mm)

Power system
Weichai WP13 electronically controlled engine is intelligent and efficient to meet the four-stage emission requirements of national non-road machinery, and has a low comprehensive fuel consumption rate. The whole machine is matched with dual-power operation mode, with a light load of 257kW and a heavy load of 269kW. According to the actual load requirements, one-click switching, fuel-saving and power are under your control.

Transmission system
The transmission system is common to the SD32 bulldozer, and has been tested by the market. The core components of torque converter, gearbox, central transmission and final transmission are all self-made. The hydraulic torque converter is carefully matched and has the highest efficiency in the industry.

Control system
· The walking system adopts single-handle electro-hydraulic control, which integrates variable speed, reversing and steering. The control is simple, and the control force is reduced by 77%. · The gear can be preset according to the working conditions, which is more efficient and intelligent. · The working device adopts pilot control, accurate control, good micro-motility and simple operation. Eight-inch LCD screen, integrated reversing image.

Driving environment
New increased positive pressure cab, high-end luxury interior, integrating anti-rolling and anti-falling functions, safe and comfortable, ultra-wide-angle vision in the cab, industry-leading; standard equipped with integrated rear air conditioning, top air duct design, standard replacement of fresh air · Both sides of the seat are equipped with wide armrests, independent support, adjustable, standard Bluetooth radio, USB interface, storage box, tea cup holder, ashtray, sunshade curtain, so that you can enjoy both.

Ability to adapt to work
The chassis system is self-made, and the four-wheel area is exported overseas, and the service life is higher than that of competitors. The chassis system has a long grounding length and stable driving. According to the working conditions, it can be configured with a straight-tilling shovel, semi-U shovel, U-shaped shovel, push coal shovel, rock shovel, sanitation shovel, angle shovel, traction frame, earth loosener, etc.; 6 LED work lights are standard to improve the construction lighting capacity at night; fuel tank volume 620L, which can be used for more than 14 hours. Industry demand.

Easy to maintain
Three-stage filtration of the fuel system, centralized layout of the filter element, convenient maintenance: · External working valve, convenient maintenance: variable speed, centralized arrangement of steering filter element, easy maintenance, can save 50% of maintenance time: the lubrication and maintenance table is clear at a glance, helping you scientifically maintain without pressure.
