Performance parameters
Parameter name |

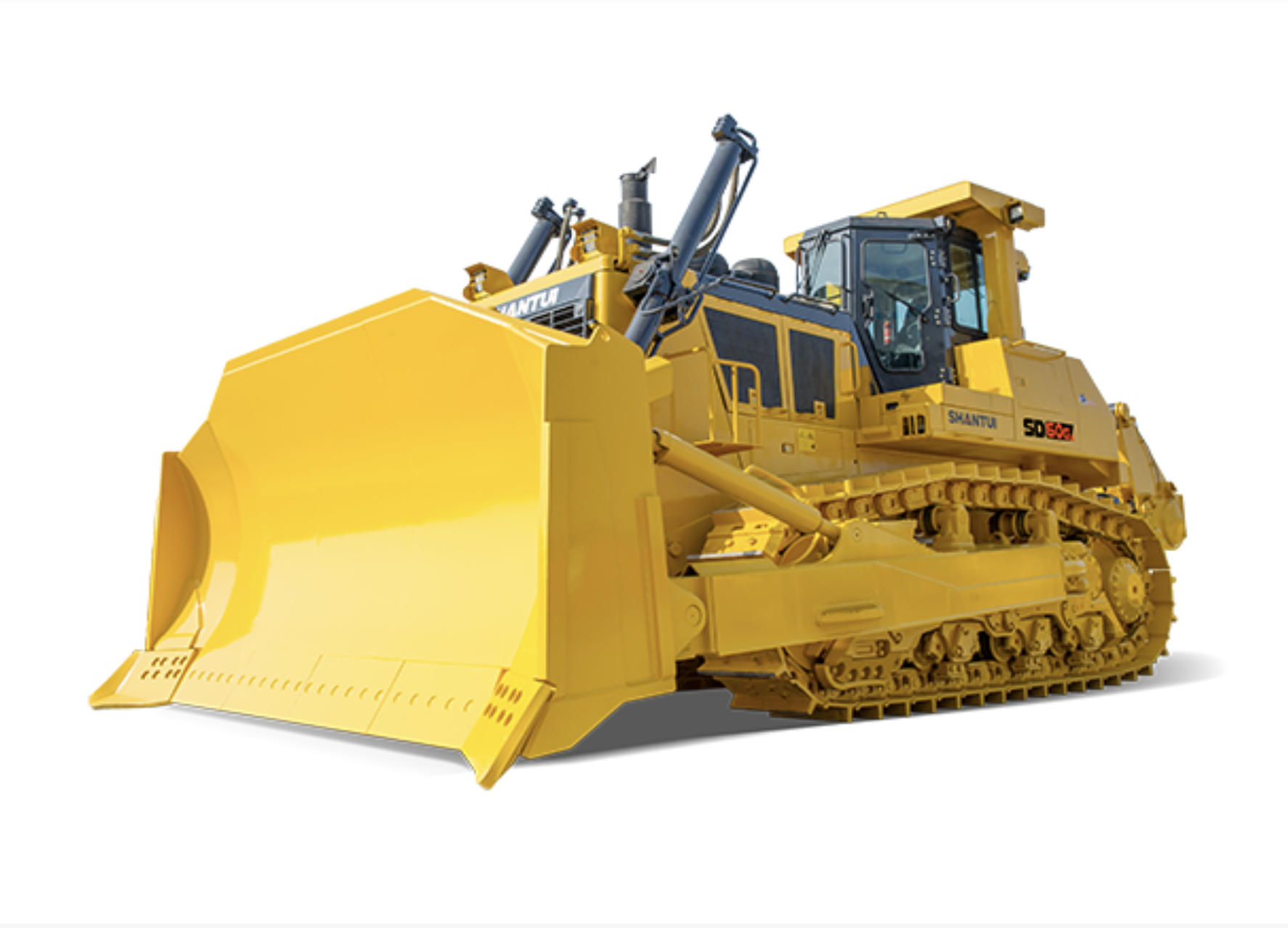

SD60-G |
Performance parameters |
|
Quality of work (kg) |
70630 |
Grounding specific pressure: (kPa) |
130.2 |
Traction performance |
|
Engine |
|
Engine model |
QSK19 |
Rated power/rated speed (kW/rpm) |
562/2100 |
External dimensions |
|
Overall dimensions of the whole machine (mm) |
10390x4690x4370 |
Walking performance |
|
Forward speed (km/h) |
F1:0-3.8,F2:0-6.8,F3:0-11.8 |
Regress speed (km/h) |
R1:0-5.1,R2:0-9.2,R3:0-15.8 |
Chassis system |
|
Track center distance (mm) |
2500 |
Track plate width (mm) |
610/710 |
Grounding length (mm) |
3840 |
Fuel tank capacity |
|
Fuel tank (L) |
1150 |
Working hydraulic fuel tank (L) |
164 |
Working device |
|
Shovel knife type |
Half U shovel |
Depth of shoveling (mm) |
715 |
Pine earthenware type |
Single tooth |
Soil depth (mm) |
1435 |
Shovel lift height (mm) |
|
Power system
With QSK19 electronically controlled engine, low fuel consumption, strong power, high reliability and global service are trustworthy;
the engine is equipped with advanced modular common rail fuel system (MCRS) to meet the emission requirements of the fourth national;
Seclon dual pre-filtration intake system effectively prevents early engine failure.
Modular design
Using a hydraulic torque converter with locking function, the output torque can change with the load, the load adaptability is strong, the hydraulic transmission at low speed, and the mechanical transmission at high speed, which can save more than 10% of the fuel. It has a high fuel economy and a normally closed brake. It has the function of parking brake, which can effectively prevent the safety of the vehicle ramp. The modular design of the final drive is not attached to the main frame, and can be assembled independently and easy to maintain.
Operating performance
It adopts a high-pressure hydraulic system, and the system pressure is 21MPa, which effectively reduces the volume of the hydraulic component. The operation is good: · The operation of the working device adopts a pilot single handle device, which is flexible, light and comfortable, and has high reliability; · The walking control adopts an electronically controlled single handle device, which can realize the function of "hand-automatic fingertip shift".
