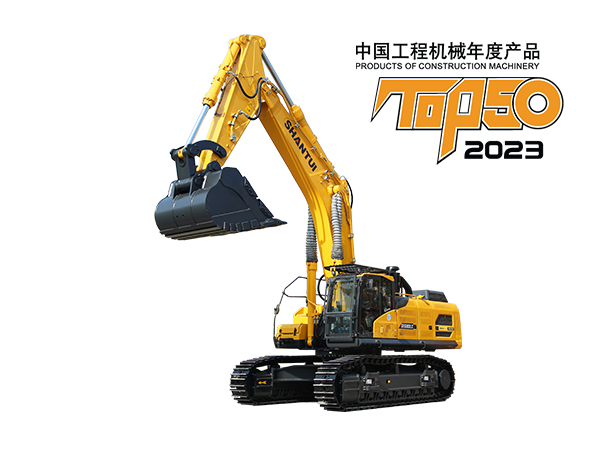

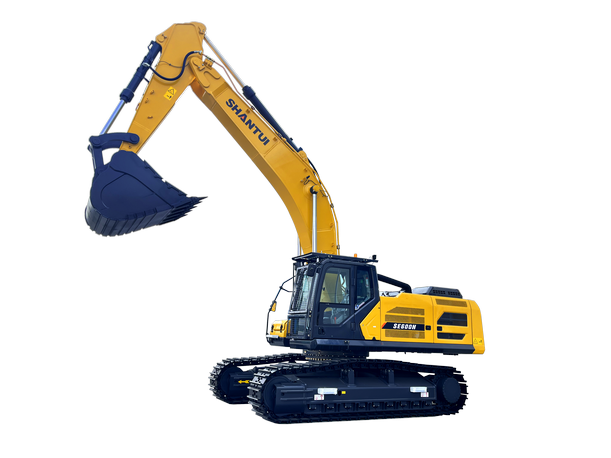

SE680LC-10W Excavator

SE680LC-10W Excavator:

Expert evaluation: SE680LC-10W hydraulic excavator, is the "golden core" product created by the mountain push excavator, large torque, low speed, low fuel consumption, compared with the same tonnage, while maintaining high efficiency, fuel consumption can be reduced by 15%, annual fuel consumption can be saved up to 150,000 yuan, great value for money.

Applicable working conditions:

Road construction      Road maintenance     Agriculture, forestry and water conservancy.        Sanitation.    Urban construction.   Airports   Bridges






Machine weight: 66000kg

Bucket capacity: 3.6~4.5(3.6)m3

Transmitter power: 566W/1900




Description

Performance parameter

Comparison item

SE680LC-10W

Overall dimension
Total length (mm) 12245
Grounding length (when shipping) (mm) 7510
Total height (to top of boom) (mm) 4750
Total width (mm) 3735
Total height (to top of cab)(mm) 3530
Weight ground clearance (mm) 1370
Minimum ground clearance (mm) 587
Tail turning radius (mm) 4145
Track length (mm) 5710
Gauge (mm) 2900
Track width (mm)
Standard track plate width (mm)
Turning platform width (mm)
Distance from center of rotation to back end (mm)
Scope of work
Maximum digging height (mm) 10855
Maximum unloading height (mm) 7015
Maximum digging depth (mm) 7040
Maximum vertical digging depth (mm) 6195
Maximum digging distance (mm) 11520
Maximum excavation distance (mm) for the ground plane 11270
Minimum turning radius of working device (mm) 5000
Maximum lifting height of dozer (mm)
Maximum depth of cutting of dozer shovel (mm)
Engine
Model number WP15H
form Direct injection, water-cooled, four-stroke, supercharged, intercooled
Displacement (L) 15.33
Rated power (kW/rpm) 566/1900
Hydraulic system
Hydraulic pump form 2 plunger pumps + gear pumps
Rated working flow (L/min) 2*510
bucket
Bucket capacity (m3) 3.6-4.5




Excellent product performance

Optimize the spool structure, regeneration channel and control strategy, reduce pressure loss, improve the machine control coordination;

The use of fully electronically controlled positive flow system, engine one main pump and one main valve joint optimization and debugging, fuel consumption is lower than

15%.

Strong product applicability

Comprehensively optimize the design of structural parts, the boom and bucket rod adopt large section box structure, the key stress position is strengthened, not afraid of harsh conditions;

The bucket bottom plate, side plate and strengthening plate are made of high-strength wear-resistant materials to improve the durability of the bucket.

Spacious and comfortable operating environment

• 10.1 "smart touch screen, integrated rich functions, improve the operating experience;

Full injection molding interior, according to ergonomics interior color effective match, not easy to cause visual fatigue of the operator;

  • Large space, wide field of vision, reasonable layout of the control device, convenient and comfortable operation; High power heating and air
  • conditioning, driving comfort.


Four-wheel belt

, 30 years of R & D and manufacturing experience, world leading technology; The world's top forging heat

' treatment process, stable and reliable quality.


Intelligent electric control, optimal power control

Intelligent control system to achieve the best match of power system and hydraulic system, improve working efficiency, reduce fuel consumption;

A new generation of human-friendly intelligent electronic control system, so that your machine working state in the master; Working mode instead of working mode, can self-identify working mode, for subdivision working conditions easier;

Action priority adjustment can be carried out in each working mode, and the operator can adjust the action priority independently according to its own operating habits, making the operation more comfortable;

Through the cloud platform, you can view the position, running track, working status and other relevant information of the vehicle at any time.

Fast and easy maintenance

  • Open back engine cover, light to open, open Angle, easy maintenance;
  • The oil fitter element is far on the right side of the door, easy maintenance; High-precision fuel filter, centrally arranged at the right
  • door, easy maintenance; Coolant filling and air filter replacement are

• within reach.

Standard configuration

  • 360 full car image
  • Forward and backhand one-click switch
  • Bluetooth capability
  • Fan blowback function
  • Dust lock cartridge
  • Cab top protective netting
  • Front cab safety net
  • Cab front down guard net
  • Cab overhead light

System Optional configuration

  • Fuel filling pump
  • Boom cylinder retainer

Optional attachments

• Crushing hammer, King Kong arm
