Performance parameter |
Comparison items |

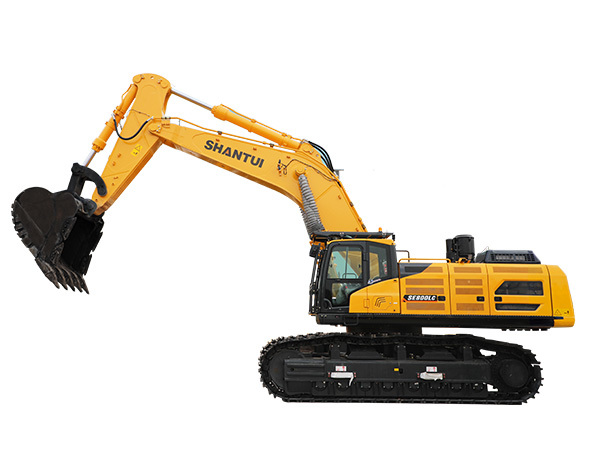

SE800LC-10W |
Overall dimension |
|
Total length (mm) |
12930 |
Groundinglength (when shipping) (mm) |
8290 |
Total height (to top ofboom) (mm) |
4730 |
Total width (mm) |
4310/3680 |
Total height (to top of cab) (mm) |
3705 |
Counterweight ground clearance (mm) |
1550 |
Minimum ground clearance (mm) |
895 |
Tail turning radius (mm) |
4145 |
Track length (mm) |
5960 |
Gauge (mm) |
4750 |
Track width (mm) |
|
Standard track plate width (mm) |
650 |
Turning platform width (mm) |
3505 |
Distance from center ofrotation to backend (mm) |
4055 |
Scope of work |
|
Maximum digging height (mm) |
111520 |
Maximum unloading height (mm) |
7710 |
Maximum digging depth (mm) |
7350 |
Maximum vertical digging depth (mm) |
5695 |
Maximum digging distance (mm) |
12200 |
Maximum excavation distance of ground plane (mm) |
111920 |
Minimum turning radius of working device (mm) |
5420 |
Maximum lift height of dozer shovel (mm) |
|
Maximum depth of cutting of dozer shovel (mm) |
|
Engine |
|
Model number |
wp17 |
form |
V-type, 8-cylinder, 4-stroke, supercharged and intercooled
|
Displacement(L) |
16.72 |
Rated power (kW/rpm) |
567/1900 |
Hydraulic system |
|
Hydraulic pump form |
2 plunger pumps + gear pumps |
Rated working flow(L/min) |
2X495+25 |
bucket |
|
Bucket capacity (m3) |
4.6-5.5 |
Rotary system |
|
Maximum turning speed (r/min) |
0-7.2 |
Brake type |
Mechanical braking |
Digging Force |
|
Bucket rod digging force (KN) |
350 |
Bucket digging force (KN) |
410 |
Operating quality and ground specific pressure |
|
Operating weight (Kg) |
76500 |
Ground specific pressure (KPa) |
110 |
Walking system |
|
Walking motor |
KYB |
Travel speed (km/h) |
3.2/4.7 |
Traction (KN) |
486 |
Climbing ability |
70% |
Tank capacity |
|
Fuel tank capacity (L) |
900 |
Cooling system (L) |
76 |
Engine oil (L) |
52 |
Hydraulic tank/System capacity (L) |
376/660 |
Strong power and excellent performanceThe new generation of motor power is far better than competing products, with low speed and large torque, 40% better power than competing products, and large economic fuel consumption area; · All-electrically controlled large displacement plunger main pump, displacement is more than 8% of competing products, large power input density, professional noise reduction treatment, excellent performance.
High reliability of structural partsThe structural design is comprehensively optimized. The moving arm and bucket rod adopt an enlarged and widened box structure. The key support adopts forging structure, and the bearing capacity is increased by 10%. The structural strength of the high-stress part is strengthened. Built-in multi-bar plate. After overall welding, destress annealing is carried out to reduce welding stress, improve reliability, and longer service life: strengthened bucket design, NM400 wear-resistant steel is used on the side plate and bottom plate of the bucket to improve the bucket wear resistance of the bucket, strengthen the rock bucket teeth, improve the material, and improve the service life.
Comfortable operating environment· Adopt 10.1-inch intelligent touch screen, integrate rich functions, improve operation experience, equipped with various information display and fault alarm · High-configuration air suspension seat, with electric heating, auxiliary waist support and other functions, can be adjusted in an all-round way; · The cab adopts the latest closed structure scheme to improve sound insulation efficiency It meets the requirements of the working conditions of the mine. Large space, wide vision, reasonable arrangement of the control device, convenient and comfortable operation: · Equipped with high-end fully automatic air conditioning in the industry, with super air ventilation and ventilation capabilities, to meet the functions of refrigeration, heating, and defrosting.
365° panoramic view, safe operation · The operator can monitor the surrounding environment without a dead angle, with a wide field of vision and safe driving.
Intelligent electronic control system Intelligent control system realizes the best matching of low speed, large torque engine and large displacement hydraulic pump, ensuring operating efficiency and reducing fuel consumption by 10%; · The controller MS execution cycle ensures the accurate regulation of the electronically controlled valve stem, and the flexible control strategy fully ensures the comfort of operation; · The working condition mode replaces the power mode, which is easier for subdivided working conditions: the user's operation habits are customized, and the action priority can be adjusted independently:, through the cloud platform, the vehicle's position, running trajectory, working status and other relevant information can be viewed at any time.
Fast and convenient maintenance, humanized maintenance channel, convenient maintenance: · Oil filter element, diesel filter element is centrally arranged in the pump room, easy to maintain! The coolant filling port is visual and easy to observe the liquid level. The oil bath air filter element has good filtration effect and convenient maintenance: · Install a hydraulic oil return signal, alarm when encountering blockage, and extend the maintenance cycle.
The whole machine can be configured! Fuel filling pump: fully automatic centralized lubrication system.
Optional accessory device.
· Loosen the earth and strengthen the bucket
