Performance parameter | |

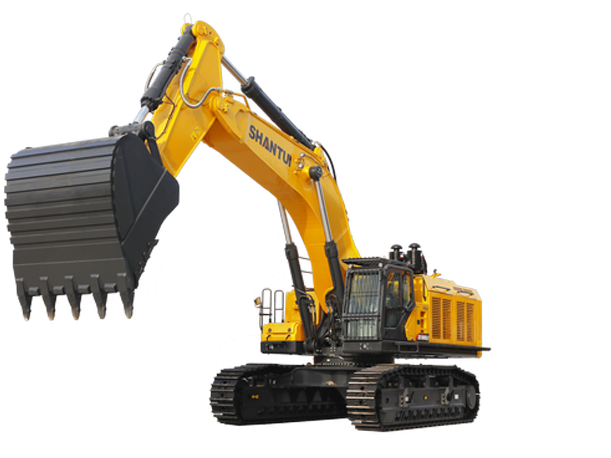

Comparison items | SE98OLC-10W |
Overall dimension | |
Total length (mm) | 13720 |
Groundinglength (when shipping) (mm) | 8415 |
Total height (to top ofboom) (mm) | 4990 |
Total width (mm) | 3605/4200 |
Total height (to top of cab) (mm) | 3720/3855 |
Counterweight ground clearance (mm) | 1645 |
Minimum ground clearance (mm) | 915 |
Tail turning radius (mm) | 4715 |
Track length (mm) | 6350 |
Gauge (mm) | 2790/3550 |
Track width (mm) | 3440/4200 |
Standard track plate width (mm) | 650 |
Turning platform width (mm) | 3480 |
Distance from center ofrotation to backend (mm) | 4595 |
Scope of work | |
Maximum digging height (mm) | 12735 |
Maximum unloading height (mm) | 8195 |
Maximum digging depth (mm) | 7150 |
Maximum vertical digging depth (mm) | 4960 |
Maximum digging distance (mm) | 12620 |
Maximum excavation distance of ground plane (mm) | 12310 |
Minimum turning radius of working device (mm) | 4395 |
Maximum lift height of dozer shovel (mm) | |
Maximum depth of cutting of dozer shovel (mm) | |
Engine | |
Model number | 6M33 |
form | Electrically controlled high pressure common rail, water cooled,in-linesix cylinder, turbocharged |
Displacement(L) | 19.6 L |
Rated power (kW/rpm) | 571 kW/1800 rpm |
Hydraulic system | |
Hydraulic pump form | |
Rated working flow(L/min) | 2X570 L/min |
bucket | |
Bucket capacity (m3) | 6.5m3 |
Rotary system | |
Maximum turning speed (r/min) | 6.9 r/min |
Brake type | |
Digging Force | |
Bucket rod digging force (KN) | 417 |
Bucket digging force (KN) | 480 |
Operating quality and ground specific pressure | |
Operating weight (Kg) | 97800 |
Ground specific pressure (KPa) | 135 |
Walking system | |
Walking system | |
Walking motor | GR170H |
Travel speed (km/h) | 2.8/4.1 km/h |
Traction (KN) | 626 kN |
Climbing ability | 70% (35°) |
Tank capacity | |
Fuel tank capacity (L) | 1250 |
Cooling system (L) | 85 |
Engine oil (L) | 63 |
Hydraulic tank/System capacity (L) | 580/1000 |
