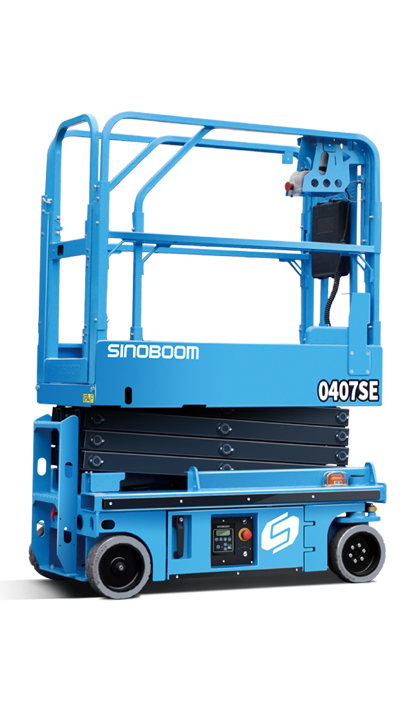

The 0407SEelectric drive shear fork aerial work platform Telescopic Aerial Work Platform by SINOBOOM is a top-tier solution designed for industries that require efficient, safe, and versatile equipment for elevated work. This platform offers stability, precise control, and ease of operation, making it a preferred choice for B2B suppliers and wholesale distributors in the construction and maintenance sectors. Whether you need reliable support for industrial work or building maintenance, this aerial work platform ensures the highest standards of safety and efficiency.
Working height: 6.5mFor industries that demand high-performance equipment, the SINOBOOM | 0407SE Telescopic Aerial Work Platform by SINOBOOM provides an ideal solution. Engineered to meet the needs of construction, maintenance, and industrial projects, this platform offers precise operation, enhanced safety, and easy maneuverability.
dimension | Maximum job height | [A] maximum platform height | [B] maximum horizontal extension |
6.5m | 4.5m | 0.6m | |
[C] Length one fold status | [D] Width one fold status | [E] Height one retraction status (guardrail not folded) | |
1.42m | 0.76m | 1.97m | |
Height - retracted state (guardrail folded) | [F] Wheelbase | Ground clearance | |
1.67m | 1.11m | 65mm | |
Ground clearance | Platform dimensions (L x W x H) | ||
20mm | 1.34m*0.7m*1.1m | ||
property | Maximum number of workers | Platform carrying capacity |
Extended platform carrying capacity |
2 peopie | 240kg | 100kg | |
Travel speed one fold status | Travel speed one lift condition |
Full lift time of platform (no load) |
|
4km/ | 0.8km/h | 20s-22s | |
Full landing time | Ability to climb | Inside/outside turning radius | |
255~30s | 25% | 0.3m/1.35m | |
Allowable tilt Angle at work (front/back/left/right) | Tire specification/type |
||
3°/1.5° | 255x76mm | ||
power | Battery voltage/capacity | Power unit |
Drive mode Motor, rear wheel |
12Vx2/115Ah | 24v DC | ||
Charger input voltage | Charger output current |
Hydraulic system volume |
|
100-240v AC | 15A | 4L | |
Machine weight | Up to standard | ||
880kg | GB/CE/ANSI/CSA/AS |
