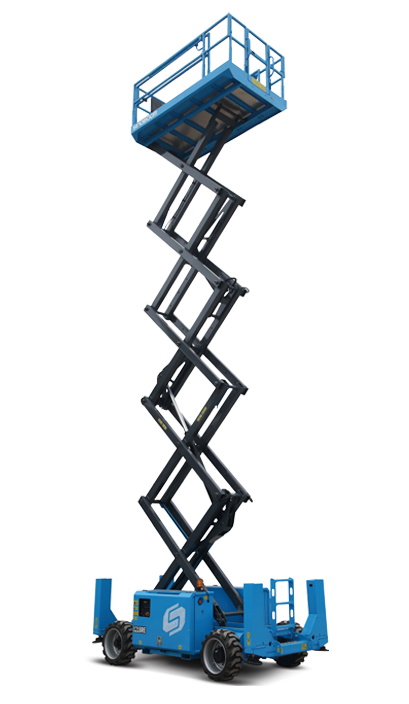

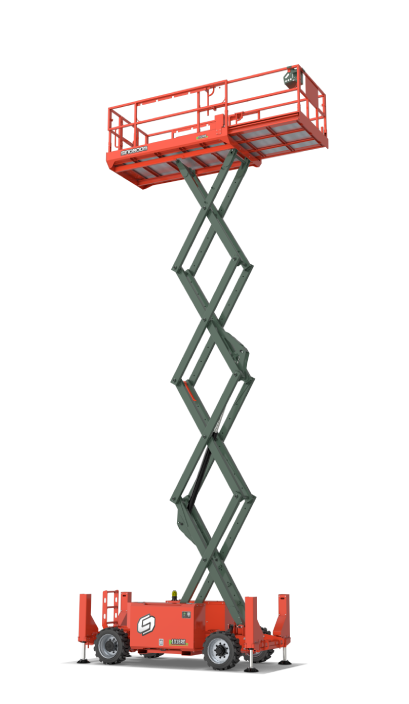

The 1018RE cross-country shear fork aerial work platform by SINOBOOM is a top-tier solution designed for industries that require efficient, safe, and versatile equipment for elevated work. This platform offers stability, precise control, and ease of operation, making it a preferred choice for B2B suppliers and wholesale distributors in the construction and maintenance sectors. Whether you need reliable support for industrial work or building maintenance, this aerial work platform ensures the highest standards of safety and efficiency.
Working height: 12 m
Platform carrying capacity: 450kg
Ability to climb: 35%
For industries that demand high-performance equipment, the SINOBOOM 1018RE cross-country shear fork aerial work platform by SINOBOOM provides an ideal solution. Engineered to meet the needs of construction, maintenance, and industrial projects, this platform offers precise operation, enhanced safety, and easy maneuverability.
Working height 12m Load up to 365KG
Excellent performance
30% ~40% climbing ability, easily cope with outdoor needs
Floating all the time, not afraid of potholes
Easy maintenance
Double side hatchback door design, easy maintenance and repair
Rotary out engine compartment, easy maintenance
High operational efficiency
1.6m meters wide platform, equipped with
one-way extension platform one key leveling,
work without fear of uneven road surface
Easy access through standard doors and elevators
Exclusive open chassis design, shorten the daily maintenance time DC motor drive, continuous working time is longer
More reliable performance
Battery voltage warning function to ensure battery life anti-collision strip protection, anti-scratch protection more in place pothole protection report and horizontal protection system, giving peace of mind working experience
Flexible handling
Small turning radius, flexible operation in narrow space increase the lateral forklift hole, higher equipment transfer efficiency
Folding guardrail, convenient transportation
argument
dimension | Maximum job height | [A] maximum platform height | [B] maximum horizontal extension |
12m | 10m | 1.5m | |
[C] Length one fold status | [D] Width one fold status |
Height one fold status |
|
3.8m/3.19m | 1.77m | 1.96m | |
E Guardrail is not folded |
[F] Wheelbase | Ground clearance | |
2.59m | 2.28m |
0.22m |
|
Platform dimensions (L x W x H) | |||
2.8mx1.6mx1.1m |
|||
property | Number of people allowed on the platform work | Platform carrying capacity |
Travel speed one fold status |
4 persons (indoor) /2 persons (outdoor) | 450kg |
0-6 km/h |
|
Travel speed one lift condition |
Full lift time of platform (no load) |
Full platform drop time (no load) | |
0-0.48 km/h |
42s-52s |
33s-43s. | |
Climbing ability |
Inside/outside turning radius |
Allowable tilt Angle at work (front/back/left/right) |
|
35% |
2.11m/4.6m |
3° | |
Angle allowed when working (left and right, legs retracted / Protruding) |
Maximum leg leveling (front and back) |
Maximum leg leveling (left and right) | |
2° / 0.8° |
5.3° (front) /4.2° (back) |
11.7° | |
Tire Type Specifications | |||
26 × 12-16.5/ solid foam | |||
power | Motivation |
Control voltage |
Drive mode |
AC motor drive |
8x6 V,390 Ah |
2WDx2WS |
|
Fuel tank capacity one diesel | Hydraulic system volume | ||
- | 90L | ||
Machine weight |
Meet the standard |
||
4510kg/4050kg |
/ |
