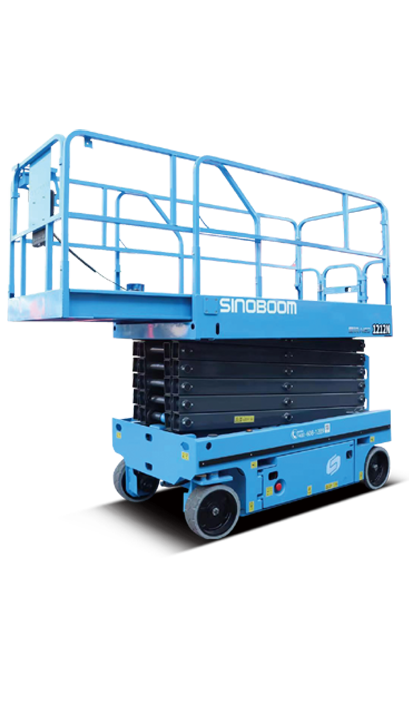

The 1212N shear fork aerial work platform by SINOBOOM is a top-tier solution designed for industries that require efficient, safe, and versatile equipment for elevated work. This platform offers stability, precise control, and ease of operation, making it a preferred choice for B2B suppliers and wholesale distributors in the construction and maintenance sectors. Whether you need reliable support for industrial work or building maintenance, this aerial work platform ensures the highest standards of safety and efficiency.
Working height: 13.9 m
Platform carrying capacity: 320kg
Ability to climb: 25%
For industries that demand high-performance equipment, the SINOBOOM 1212N shear fork aerial work platform
by SINOBOOM provides an ideal solution. Engineered to meet the needs of construction, maintenance, and industrial projects, this platform offers precise operation, enhanced safety, and easy maneuverability.
Working height 13.9 m Load up to 320KG
Easy access through standard doors and elevators
Exclusive open chassis design, shorten the daily maintenance time DC motor drive, continuous working time is longer
More reliable performance
Battery voltage warning function to ensure battery life anti-collision strip protection, anti-scratch protection more in place pothole protection report and horizontal protection system, giving peace of mind working experience
Flexible handling
Small turning radius, flexible operation in narrow space increase the lateral forklift hole, higher equipment transfer efficiency
Folding guardrail, convenient transportation
argument
dimension | Maximum job height | [A] maximum platform height | [B] maximum horizontal extension |
13.9m | 11.9m | 0.9m | |
[C] Length one fold status | [D] Width one fold status | Height one retraction status (guardrail not folded) | |
2.39m | 1.18m | 2.09m | |
Height - retracted state (guardrail folded) | [F] Wheelbase | Ground clearance | |
2.62m | 1.85ml |
0.1m |
|
Platform dimensions (L x W x H) | |||
2.25 mx1.15 mx1.1 m |
|||
property | Maximum number of workers | Platform carrying capacity |
Travel speed one fold status |
2 players | 320kg |
0~3.2 km/h |
|
Travel speed one lift condition |
Full platform drop time (no load) |
Full lift time of platform (no load) | |
0-0.8km/h |
44s~49s |
63s-68s | |
Climbing ability |
Inside/outside turning radius |
Allowable tilt Angle at work (front/back/left/right) |
|
25% |
0.07 m / 2.35m |
3°/1.5° | |
Tire size/type |
|||
380x125mm/solid | |||
power | Battery voltage/capacity |
Control voltage |
Drive mode |
24V,260 Ah (lead-acid battery) 25.6V, 200Ah (Lithium battery) |
24v DC |
2 WDx2 WS |
|
Charger input voltage | Charger output current | Hydraulic system volume | |
100-240v AC | 30A | 15L | |
Brake |
Machine weight |
Up to standard |
|
/ |
2900kg /2650kg |
GB |
