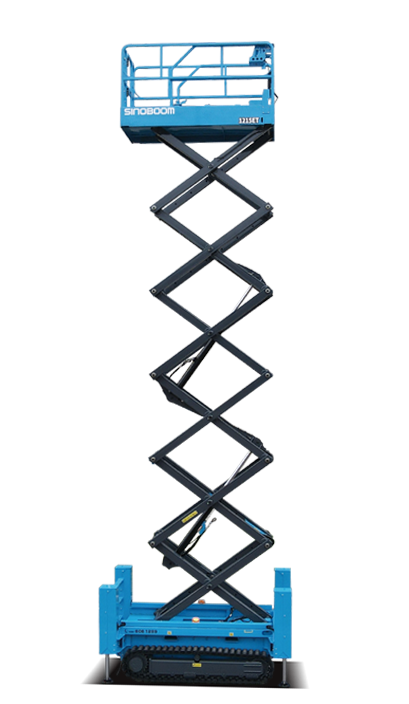

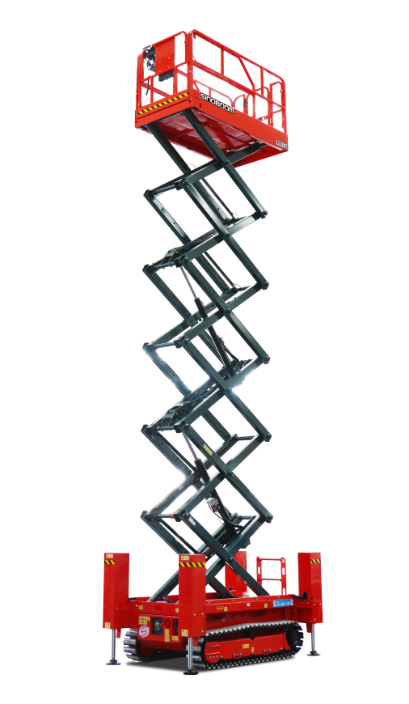

The 1215ET self-propelled track shear fork aerial work platform by SINOBOOM is a top-tier solution designed for industries that require efficient, safe, and versatile equipment for elevated work. This platform offers stability, precise control, and ease of operation, making it a preferred choice for B2B suppliers and wholesale distributors in the construction and maintenance sectors. Whether you need reliable support for industrial work or building maintenance, this aerial work platform ensures the highest standards of safety and efficiency.
Working height: 14 m
Platform carrying capacity: 320kg
Ability to climb: 230
For industries that demand high-performance equipment, the SINOBOOM 1215ET self-propelled track shear fork aerial work platform by SINOBOOM provides an ideal solution. Engineered to meet the needs of construction, maintenance, and industrial projects, this platform offers precise operation, enhanced safety, and easy maneuverability.
Working height 14 m Load up to 320KG
Easy access through standard doors and elevators
Exclusive open chassis design, shorten the daily maintenance time DC motor drive, continuous working time is longer
More reliable performance
Battery voltage warning function to ensure battery life anti-collision strip protection, anti-scratch protection more in place pothole protection report and horizontal protection system, giving peace of mind working experience
Flexible handling
Small turning radius, flexible operation in narrow space increase the lateral forklift hole, higher equipment transfer efficiency
Folding guardrail, convenient transportation
argument
dimension | Maximum job height | [A] maximum platform height | [B] maximum horizontal extension |
14m | 12m | 0.9m | |
[C] Length one fold status | [D] Width one fold status |
Height one fold state (guardrail folded |
|
2.79m | 1.58m | 2.06m | |
E Height-retraction state (guardrail not folded) |
[F] Wheelbase | Ground clearance | |
2.69m | 1.782 m(steel track) 1.738 m(rubber track) |
0.11m |
|
Platform dimensions (L x W x H) | |||
2.3mx1.15mx1.1 m |
|||
property | Maximum number of workers | Platform carrying capacity |
Travel speed one fold status |
2 players | 320kg |
0~2.4km/h (secondary descent height and the following state) |
|
Travel speed one lift state |
Full lift time of platform (no load) |
Full platform drop time (no load) | |
Okm/h (state above secondary descent height) |
63s-68s |
55s-60s. | |
Climbing ability |
Inside/outside turning radius |
Allowable tilt Angle at work (front/back/left/right) |
|
30% | 3°/1.5° | ||
Angle allowed when working (left and right, legs retracted/extended) |
Maximum leg leveling (front and back) |
Maximum leg leveling (left and right) | |
2° / 0.5° |
7° |
12° | |
Tire Type Specifications | |||
Tracks | |||
power | Motivation |
Control voltage |
Drive mode |
8*6V,290 Ah, 20 hr(Tianergy) 8*6V,260 Ah,20 hr(DISCOVER) 48 V DC/4 kW |
24v DC |
power-driven |
|
Fuel tank capacity one diesel | Hydraulic system volume | ||
- | 20L | ||
Machine weight |
Meet the standard |
||
3690kg- Steel track (standard) |
GB/CE/EAC |
