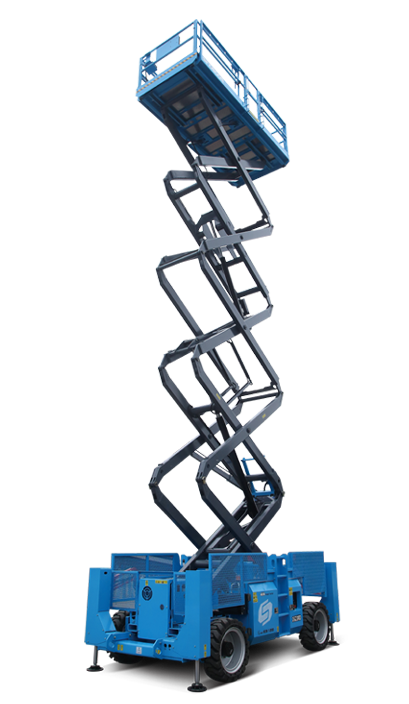

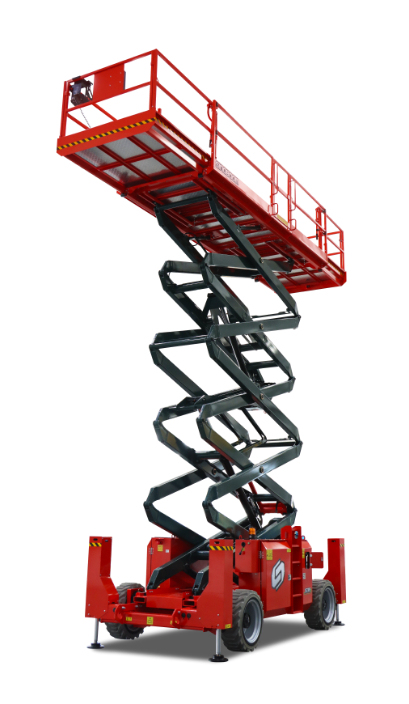

The 1623RD cross-country shear fork aerial work platform by SINOBOOM is a top-tier solution designed for industries that require efficient, safe, and versatile equipment for elevated work. This platform offers stability, precise control, and ease of operation, making it a preferred choice for B2B suppliers and wholesale distributors in the construction and maintenance sectors. Whether you need reliable support for industrial work or building maintenance, this aerial work platform ensures the highest standards of safety and efficiency.
Working height: 18.2 m
Platform carrying capacity: 680kg
Ability to climb: 40%
For industries that demand high-performance equipment, the SINOBOOM 1623RD cross-country shear fork aerial work platform by SINOBOOM provides an ideal solution. Engineered to meet the needs of construction, maintenance, and industrial projects, this platform offers precise operation, enhanced safety, and easy maneuverability.
Working height 18.2 m Load up to 680KG
Efficient operation performance
Powerful working load, give you unprecedented efficiency experience two-way extensible platform, huge working space fearless large Angle tilt, one key leg leveling
Strong off-road performance
40% climbing ability, not afraid of outdoor work
needs to float all the time, not afraid of potholes
Easy access through standard doors and elevators
Exclusive open chassis design, shorten the daily maintenance time DC motor drive, continuous working time is longer
More reliable performance
Battery voltage warning function to ensure battery life anti-collision strip protection, anti-scratch protection more in place pothole protection report and horizontal protection system, giving peace of mind working experience
Flexible handling
Small turning radius, flexible operation in narrow space increase the lateral forklift hole, higher equipment transfer efficiency
Folding guardrail, convenient transportation
argument

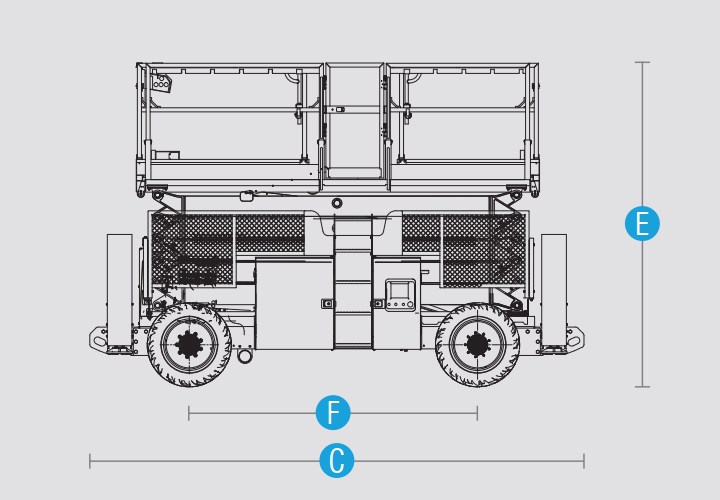

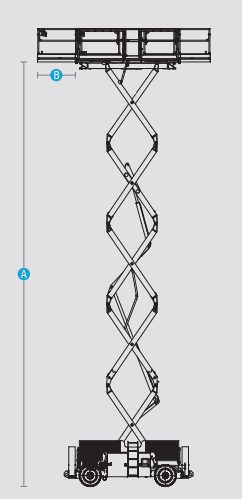

| dimension | Maximum job height | [A] maximum platform height | [B] maximum horizontal extension |
| 18.2m | 16.2m | 1.5m/1.2m | |

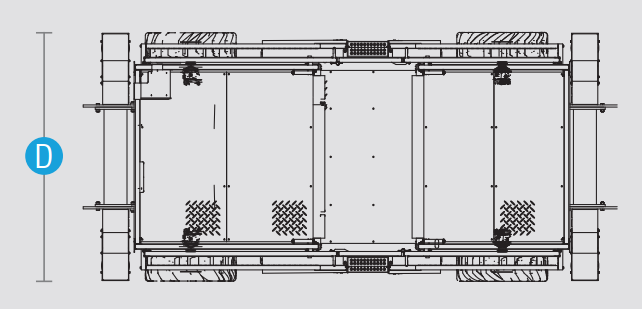

| [C] Length one fold status | [D] Width one fold status |
Height one fold status |
|
| 4.88m | 2.27m | 2.47m | |
|
E Guardrail is not folded |
[F] Wheelbase | Ground clearance | |
| 3.15m | 2.84m |
0.36m |
|
| Platform dimensions (L x W x H) | |||
|
3.98mx1.83mx1.1 m |
|||
| property | Number of people allowed on the platform work | Platform carrying capacity |
Travel speed one fold status |
| 4 persons (indoor) /4 persons (outdoor) | 680kg |
6.1km/h |
|
| Travel speed one lift condition |
Full lift time of platform (no load) |
Full platform drop time (no load) | |
| 1.1 km/h |
70s-90s |
60s-70s. | |
|
Climbing ability |
Inside/outside turning radius |
Allowable tilt Angle at work (front/back/left/right) |
|
| 40% |
2.2m/5.3m |
3° | |
| Angle allowed when working (left and right, legs retracted / Protruding) |
Maximum leg leveling (front and back) |
Maximum leg leveling (left and right) | |
| 2° / 0.8° |
7° |
12° | |
| Tire Type Specifications | |||
| 33 x 12-20/ solid | |||
| power | Motivation |
Control voltage |
Drive mode |
|
Deutz D2011L03i |
12V DC |
4WDx2WS |
|
| Fuel tank capacity one diesel | Hydraulic system volume | ||
| 110L | 147L | ||
|
Machine weight |
Meet the standard |
||
| 8780kg |
ISO/CE/AS/CU-TR |
