Performance parameter |
Product model |

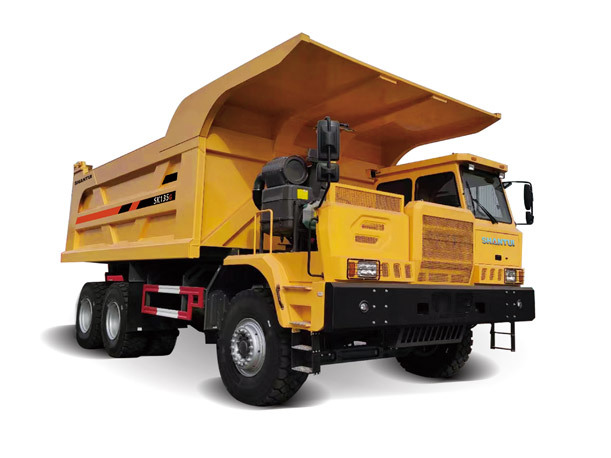

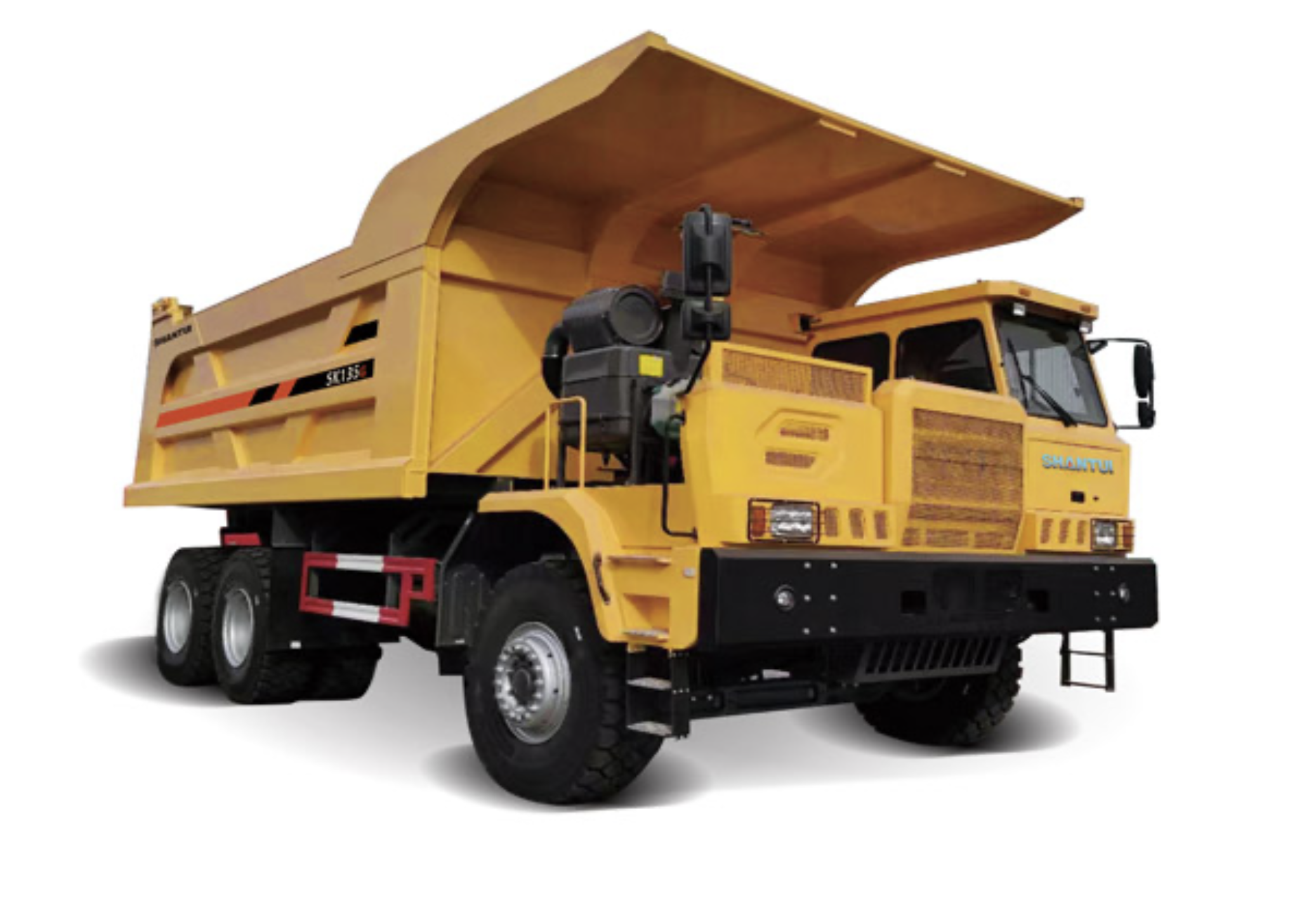

SK135 |
Size parameters |
|
Vehicle external dimensions (mm) |
10250*4000*4450 |
wheelbase (mm) |
4665+1830 |
Minimum ground clearance(mm) |
380 |
Quality parameters |
|
Rated load(kg) |
90000 |
Vehicle preparation quality (kg) |
45000 |
Performance parameters |
|
Maximum speed (km/h) |
42 |
Maximum climbing slope (%) |
30 |
Engine |
|
Model number |
WP15HG770E304 |
Rated power(kw/rpm) |
5661900 |
Gearbox |
|
Model number |
8DS280A+FHB400A |
axle |
|
Front axle |
30 |
Rear axle |
50+50 |
wheel |
|
Tyre type |
16.00R29 |
top |
|
volume((m³) |
50 |
Surging powerSurging power. WP15H engine is full of power and high degree of modularity, which greatly reduces the point of failure; the engine is disconnected from the gearbox, and the outer diameter of the main drive shaft pipe is ∅140, which is reliable to transmit power; MCK55ZG drive axle, while having a large deceleration ratio, bridge shell stiffness, shaft head strong change, connection Increase the strength of knot bolts: · Reliable power chain escorts long-lasting power and high attendance.
Hard core bearingThe hard core load-bearing frame assembly is upgraded from the original 10mm+10mm double-layer frame to 12mm+12mm double-layer frame. At the same time, the height of the longitudinal beam is increased from 420mm to 430mm, which greatly improves the load-bearing capacity, optimizes the upper connection design, and realizes the effective combination of the integrity and reliability of the vehicle. · The front suspension adopts oil and gas suspension, and the rear suspension adopts the overall balance shaft and the new rod system balance suspension design. The reliability is high: the overall ball-articulated triangular thrust rod assembly, longitudinal and transverse buffer transmission, and compensates 0 losses.
Efficient transportationEfficient transportation 50 square large-size loading, give full play to the load-bearing advantages, and greatly improve the operation efficiency of the mining area! Using 16.00R25 tires and 11.5/2.0-25 engineering steel rings, it is still flat under the harsh road ring in the mining area. Comfortable driving
Comfortable drivingComfortable driving adopts a full hydraulic steering system, which makes it easy for the driver to operate. At the same time, the steering fuel tank is added to improve the heat dissipation capacity of the hydraulic oil, and the safety guarantee is upgraded: the dual-loop braking system uses 6 30-inch double-chamber brake compartments to ensure sufficient braking power: the narrow-body cab has good sealing, good comfort, and the driver's vision is wider.
