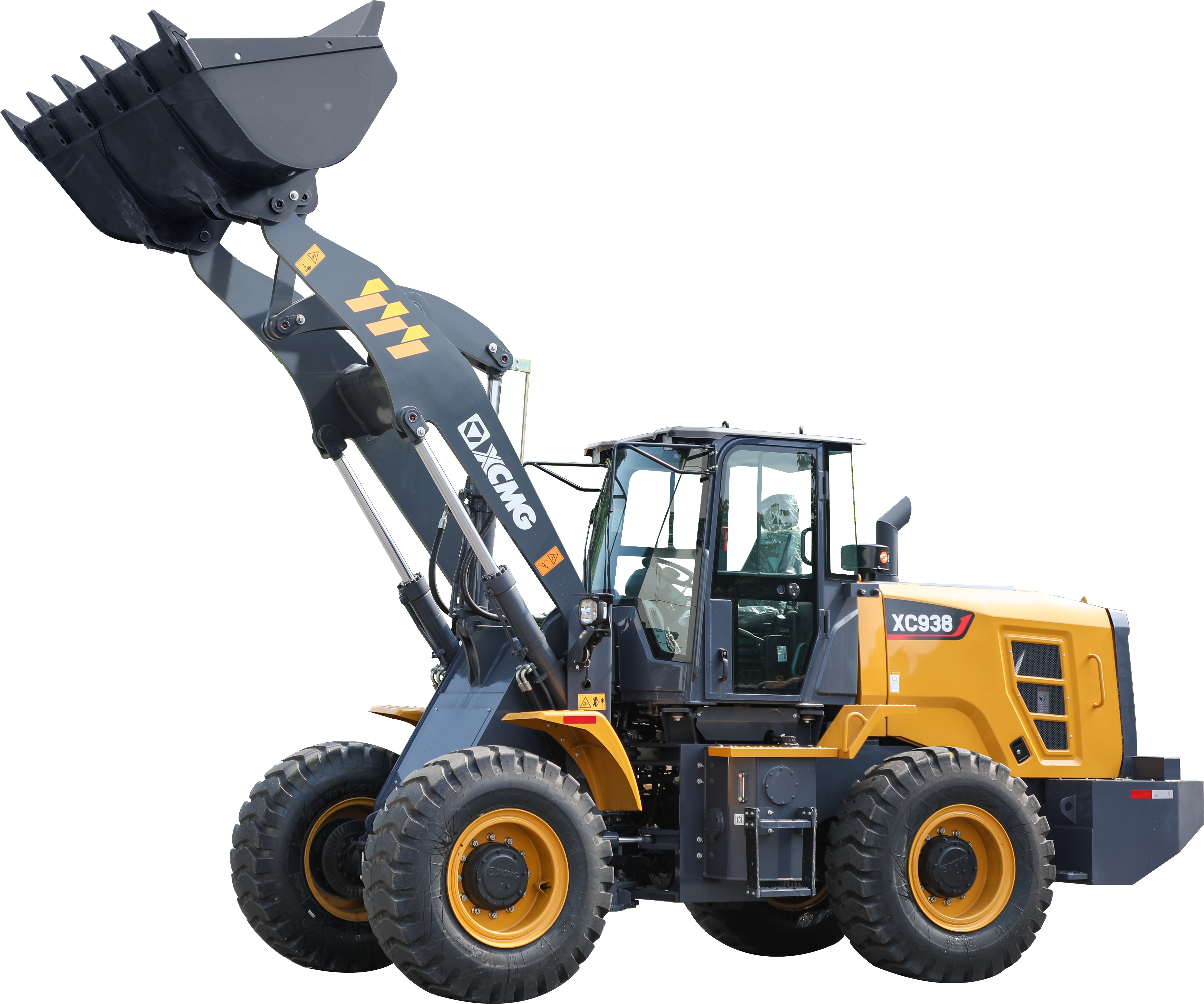

XC938 medium loader

XC938 medium loader
Expert assessment:
The use of high-torque EFI engine, Xugong carefully developed power curve, power matching reasonable, advanced technology and excellent performance; The transmission system matching the fixed shaft transmission with the large quantity of the standard market and the heavy duty drive axle made by Xugong has been tested by the market for a long time, and is mature, reliable and has strong carrying capacity; The structural components use finite element analysis technology to reduce stress concentration, eliminate local weaknesses, and greatly improve reliability.

​Rated load (kg)3500
Rated power (kW)107
Machine weight (kg)10500+200


Applicable working conditions:
mine
Harbor
Sand and gravel yard
Coal yard
Steel works
Description
Product introduction
Standard distribution control high voltage common rail engine, fuel injection using ECU control, high combustion efficiency, more economical and fuel saving. Fixed shaft transmission, forward four gear backward second gear, speed distribution is reasonable, whether heavy shovel loading or empty transfer, can be quickly completed. A more efficient three-element torque converter ensures maximum engine power utilization. According to the different material density design of the series of bucket capacity, after the bucket shape optimization can be easily inserted into the pile, high full bucket rate. Full view rear glass, high rear lights, reverse safety. Frame structure engine hood, upside-down side door, large opening Angle, engine and radiator repair, maintenance easier.

Product selling point
The use of high-torque EFI engine, Xugong carefully developed power curve, power matching reasonable, advanced technology and excellent performance. Large displacement single pump shunt hydraulic system, large cylinder strength, fast lifting arm, faster loading speed and more efficient. The high-torque engine is perfectly matched with the high-pressure small-displacement hydraulic system, and the whole machine has strong operating performance and low fuel consumption rate. According to the working conditions, three engine power modes of light load, medium load and heavy load can be selected to achieve maximum fuel saving. The structural components use finite element analysis technology to reduce stress concentration, eliminate local weaknesses, and greatly improve reliability. Equivalent to the car level luxury cab, large space, safe and comfortable driving, accessible operating components and buttons, easy to achieve a variety of operations.
