The electronically controlled turbocharged engine has the advantages of good fuel economy, abundant power, and easy starting at low temperatures; The engine monitoring system can monitor the working condition of each cylinder in real time, extending the service life of the engine.
Fully automatic transmission, hydraulic torque converter with torque increasing function and free guide wheel, and automatic shifting technology based on intelligent control, with strong power and fast response speed.
Fully hydraulic maintenance free wet drive axle with strong load-bearing capacity; The dual circuit fully hydraulic wet braking system enhances the safety of the entire machine.
Adopting a super heavy load, large articulated, and long wheelbase structural design, the structural components are analyzed using finite element method, and key parts are welded by robots. It has strong load-bearing capacity and can withstand harsh working conditions with variable loads.
XCMG's characteristic working linkage, through finite element simulation analysis, can withstand torque and impact under various working conditions.
The boom and bucket are made of high-strength structural steel and wear-resistant steel, which are sturdy and wear-resistant.
Apply load sensitive variable technology to provide pressure and flow according to actual operational needs, avoiding high-pressure overflow losses and reducing energy consumption by 10%.
Implementing ICCO dynamic power cutoff based on the angle of the brake pedal and different load conditions of the entire machine can reduce fuel consumption while improving overall operational efficiency.
The intelligent independent cooling system detects engine water temperature, hydraulic oil temperature, torque converter oil temperature, air to air intercooling temperature, etc., achieving intelligent control of fan speed and energy saving and reduction.
XCMG's new integrated turbocharged cab is equipped with ROPS&FOPS cab scaffolding that complies with ISO anti rollover/anti falling object standards.
Adjustable air suspension streamlined vibration damping high backrest seat, without passenger seat.
Project |
Unit |

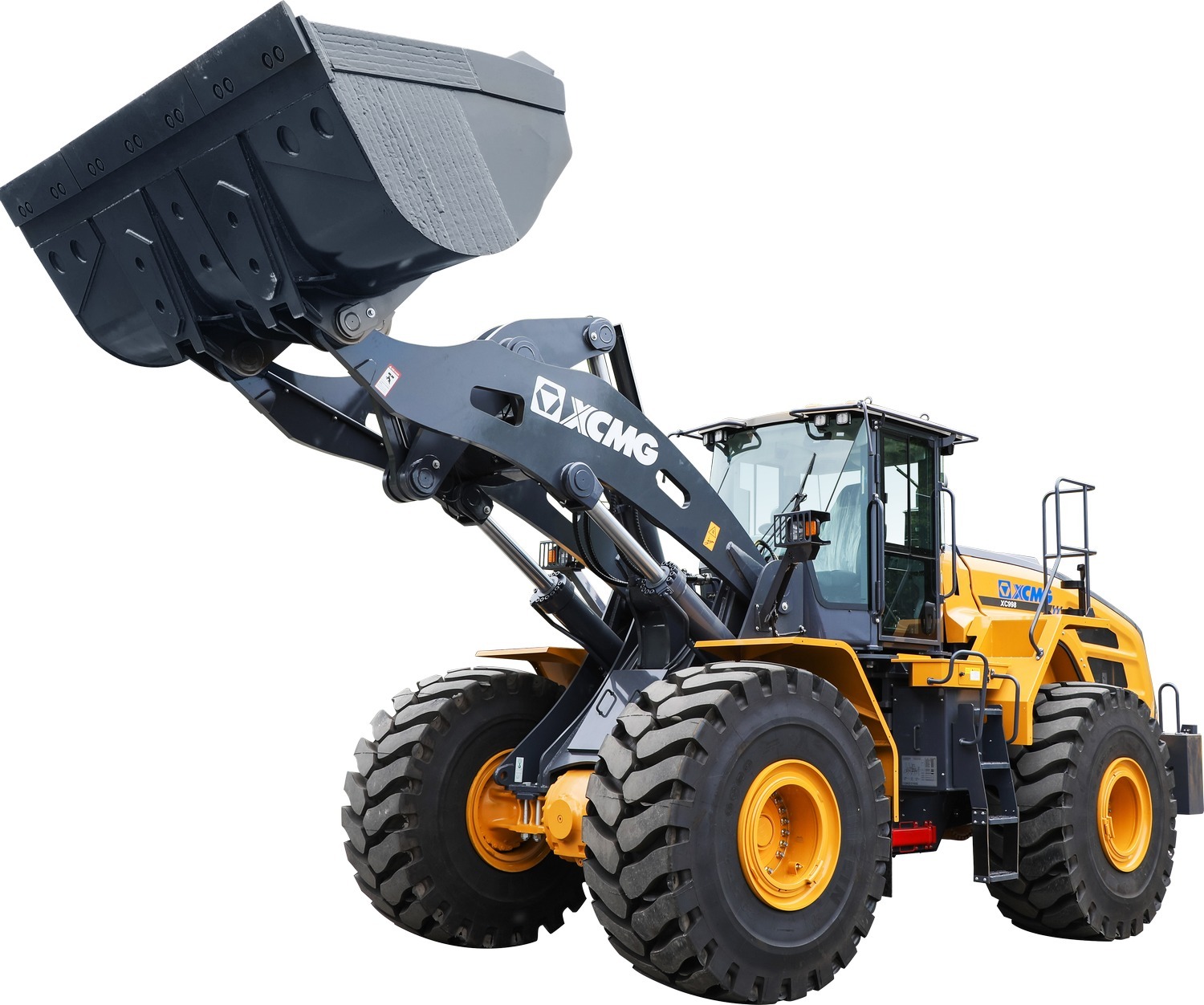

XC998 |
Rated load capacity |
kg |
10000 |
Rated power |
kW |
261 |
Overall weight |
kg |
32000 |
Unloading height |
mm |
3370 |
Maximum digging force |
kN |
≥260 |
