XCA160L8

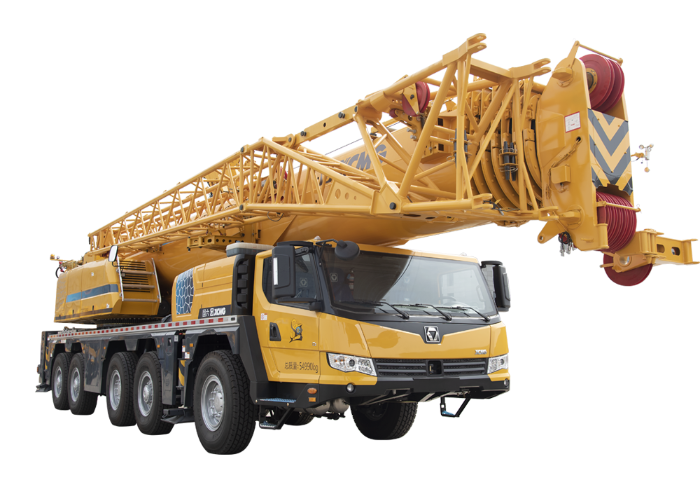

The new single cylinder pin telescopic system has an eight section telescopic main arm of 88m, a 34.5m auxiliary arm, and a maximum boom length of 116.6m. It is industry-leading in lifting height and operating range. The chassis of the five bridge all terrain crane, with full bridge steering and six steering modes, is flexible and adaptable, providing users with diverse steering mode choices for moving vehicles in narrow spaces. Short distance transfer can carry a 22t counterweight (not exceeding the width, including a 10t fixed counterweight) and all supporting foot pads, meeting 40% of the working conditions and saving 1 pallet truck. Hooks, auxiliary arms, independent arm heads, etc. are interchangeable with 100-130 ton products, saving 10% of purchasing costs.
Description

Performance parameters
Project Unit XCA160L8
Engine rating kw/(r/min) 221/2200
Maximum driving speed km/h ≥80
Maximum Climbing Slope ≥45
Maximum rated total lifting capacity t 160
Longest main arm m 88
