XDE240

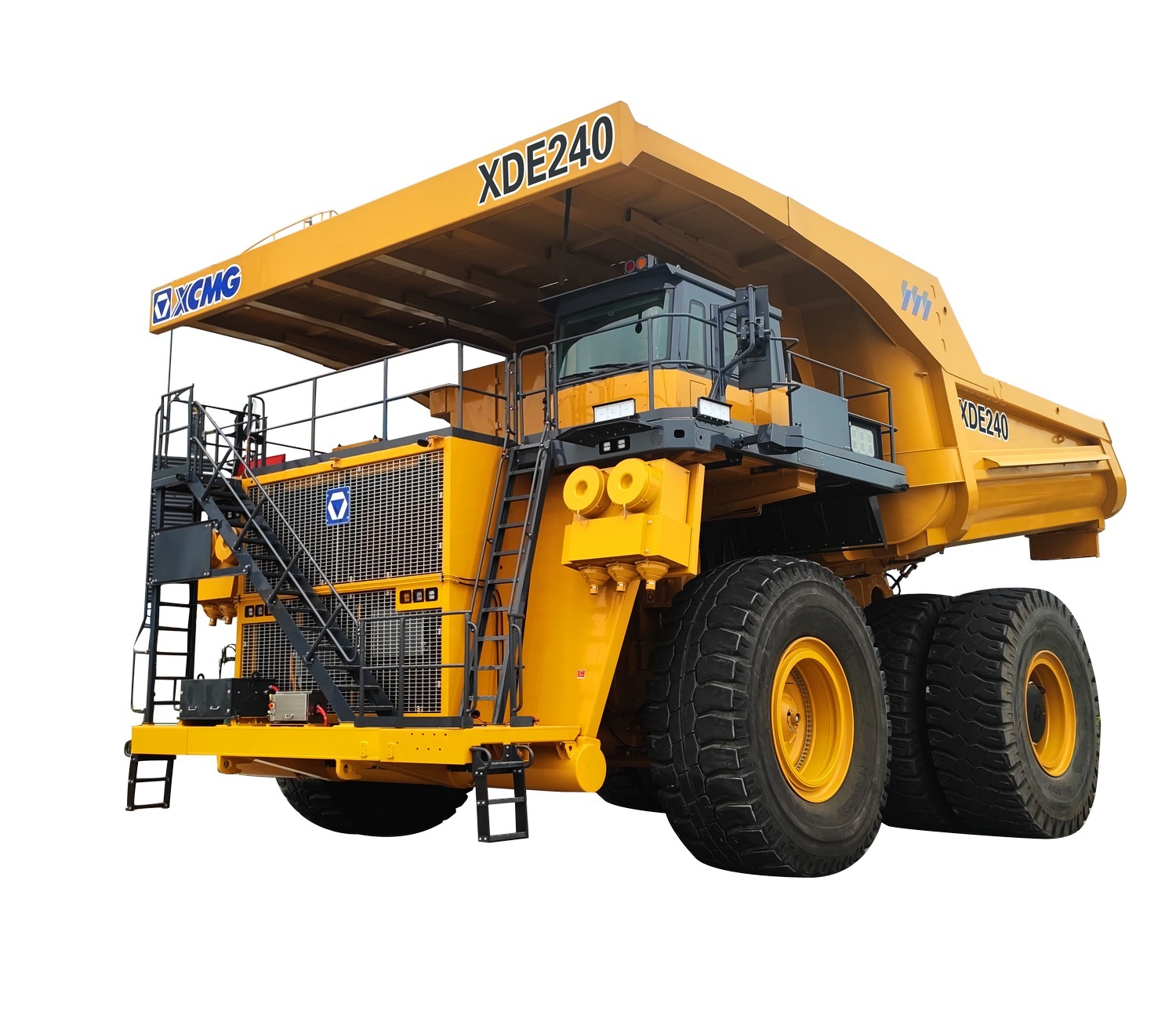

XDE240 mining dump truck, suitable for large-scale open-pit mining with an annual output of 20 million tons and large-scale earthwork transportation construction. The weight of this model has been reduced, allowing it to load more materials and reducing transportation costs per ton. Excellent performance in power system, transportation capacity, speed efficiency, and other aspects.
Description
  • Original imported electronic control diesel engine, single stage turbocharging, good fuel economy, and abundant power; The engine monitoring system can monitor the working condition of each cylinder in real time, extend the service life of the engine, and reduce operating costs.
  • Adopting imported AC power transmission system, it is safe and reliable, with low failure rate and low maintenance cost. It can achieve constant power control, stepless speed regulation, strong traction ability, and ensure maximum production efficiency.
  • The frame adopts a box shaped section design and is made of high-strength high-quality alloy steel plates, which have excellent fatigue resistance, low-temperature impact toughness, and welding performance. The critical stress area adopts cast steel parts, which have a longer service life.
  • The cargo compartment is welded with high-strength wear-resistant plates and low-alloy high-strength quenched and tempered steel, with a long service life; Lightweight design effectively reduces the weight of the cargo compartment, improves transportation efficiency, and improves fuel economy.
  • ROPS&FOPS cab that meets the SO anti rollover/anti falling object standards, with ergonomic design, spacious and wide field of view: equipped with audio backrest and lumbar support seats, providing a comfortable and safe driving environment.


Project Unit XDE240
Total vehicle mass kg 402000
Rated load capacity kg 230000
Curb weight  kg 172000
Engine rated power kW 1864
Maximum engine torque Nm 11868
Maximum speed km/h 64
Maximum Climbing Slope % 17
Minimum turning diameter m 28.4
Cargo compartment volume 平装118;2:1堆装148
