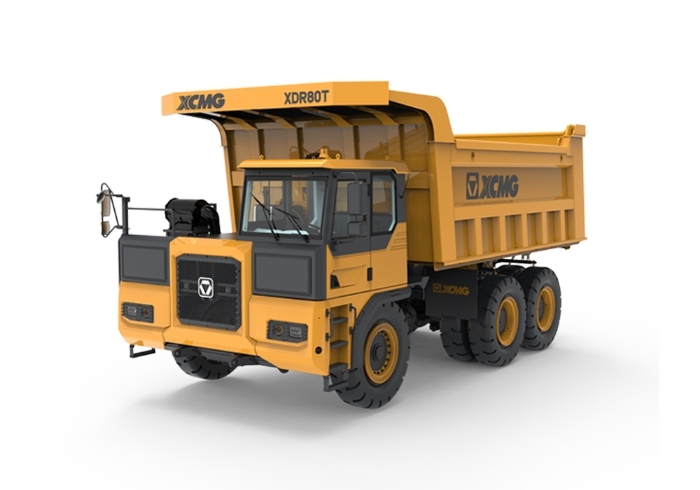

XDR80T

The XDR80T three axle rigid mining car is the world's first rigid mining car to adopt the advantages of rigid dump truck technology. Based on the advantages of rigid dump truck technology and the introduction of the cost design concept of wide body cars, it has given a new definition to the development of the next generation of economical mining car technology, with low comprehensive operating costs and a product design life of 6-8 years. This product has the high reliability of a classic mining truck, with a price slightly higher than that of a wide body dump truck and far lower than that of a classic mining truck. It has strong driving ability, small turning radius, and large climbing slope, and has strong adaptability to harsh working conditions such as muddy, rugged, and narrow conditions.
Description
The XDR80T three axle rigid mining truck is the world's first new model designed based on the advantages of traditional rigid dump truck technology and the low-cost design concept of introducing wide body trucks:
  • Adopting a full oil and gas frame system, the front axle adopts a MacPherson independent frame to improve the force on the frame, prolong its lifespan, and enhance driving comfort.
  • Adopting a fully welded steel frame with key welds fully penetrated, it belongs to the classic mining car technology, with advanced design concepts and high reliability.
  • Adopting a fully hydraulic steering design and equipped with emergency steering, the steering is more labor-saving and safer.
  • Adopting a pneumatic caliper disc braking system, the braking is stable, safe and reliable, with a simple structure and convenient maintenance. It is equipped with hydraulic slow-moving to ensure safe braking.
  • Newly developed driver's cab that conforms to ergonomics, equipped with LCD display screen and CAN bus fault diagnosis system, with a higher level of intelligence



Project Unit XDR80T
Full load total weight kg 106000
Total vehicle mass kg /
Rated load capacity kg 72000
Curb weight  kg 34000
Rated power kW/rpm 353/1900
Maximum torque Nm/rpm 2200/1100~1500
Maximum speed km/h 45
Maximum Climbing Slope % 30%
Turning diameter m 11
Minimum ground clearance mm 440
Loading height mm 3592/4332
Cargo compartment volume Flat 35m; 2: 1 stack of 50m: (Multiple cargo compartments can be selected based on material density and type)
