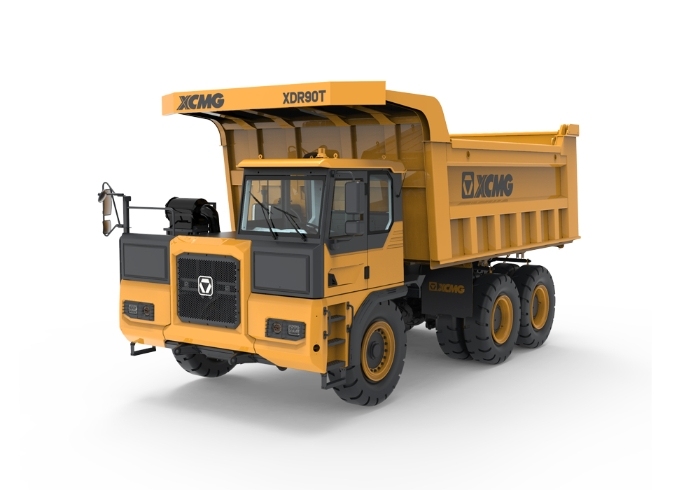

XDR90T

The XDR90T three axle rigid mining car adopts the advantages of rigid dump truck technology, introduces mature power transmission systems for wide body vehicles, and economical cost control methods, and develops a new category of mining car products. The product design has a lifespan of 6-8 years and a low comprehensive operating cost. This product has the high reliability of a classic mining truck, with a price slightly higher than that of a wide body dump truck, but far lower than that of a classic mining truck. It has strong driving ability, small turning radius, large climbing slope, and strong adaptability to harsh working conditions such as mud, rugged, and narrow.
Description
          The XDR90T three axle rigid dump truck is a lightweight mechanical transmission dump truck that adopts the advantages of rigid dump truck technology, based on the advantages of rigid dump truck technology、i
ntroducing the cost design concept of wide body vehicles:
        1. Adopting a fully oil and gas county frame system, the front axle adopts a MacPherson independent frame to improve the frame's stress and prolong its lifespan.
        2. Adopting a fully welded steel frame with key welds fully penetrated, it belongs to the advanced design concept of classic mining car technology and has high reliability.
        3. Adopting a fully hydraulic steering design and equipped with emergency steering, the steering is more labor-saving and safer.
        4. Adopting a pneumatic caliper disc braking system, the braking is stable, safe and reliable, with a simple structure and convenient maintenance. 5. Newly developed human-machine engineering cab, equipped with LCD display screen and CAN bus fault diagnosis system, with a higher level of intelligence. 6. Adopting a 35 ton front axle and a 45 ton reinforced middle and rear axle, with no spokes and large wheel rims, the reliability is higher


Project Unit XDR90T
Full load total weight kg 118000
Total vehicle mass kg /
Rated load capacity kg 81000
Curb weight  kg 37000
Rated power kW/rpm 412/1900
Maximum torque Nm/rpm 2500/1100~1500
Maximum speed Km/h 45
Maximum Climbing Slope % 30
Turning radius m 11
Minimum ground clearance mm 440
Loading height mm 4332
Cargo compartment volume 2:1堆装 35-53
