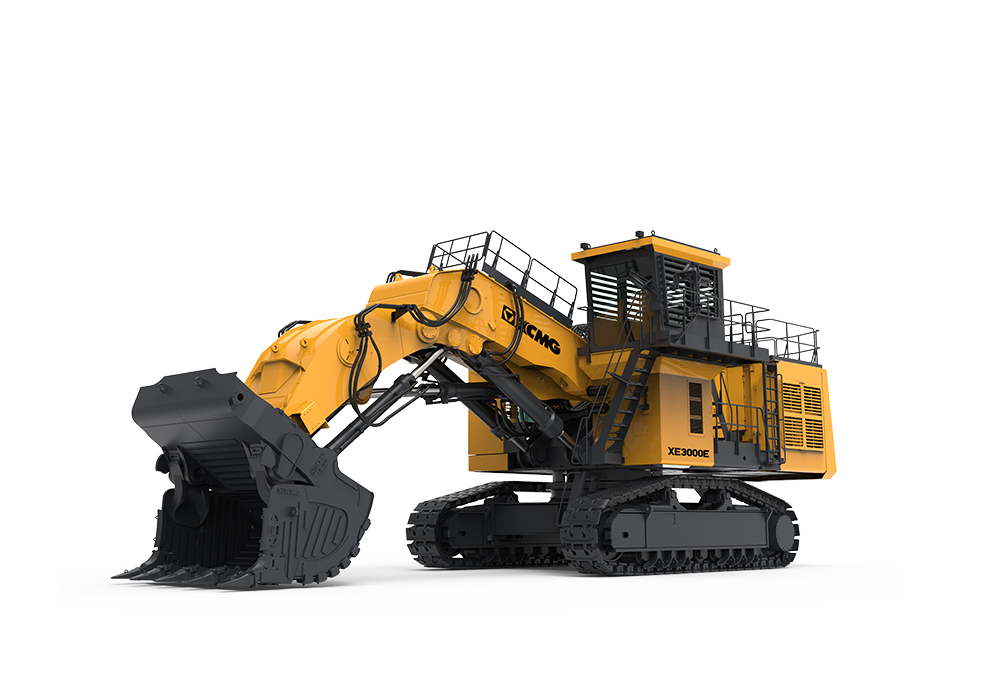

XE3000E hydraulic excavator (front shovel) is a product developed by XCMG Group with years of research and development experience, independent innovation, and multiple independent intellectual property rights. This super large hydraulic excavator (front shovel) is designed with a focus on reliability, high efficiency, energy conservation, intelligence, comfort, and maintenance convenience. The bucket capacity is 13m ³ -18m ³, which can meet various mining construction conditions and can be used as a complete set with mining dump trucks ranging from 100 tons to 170 tons.
Description
  • Key human shaped heavy-duty structural components such as chassis, rotating platform, and working device adopt anti fatigue design. Through coupling fatigue simulation of residual stress and working stress, fatigue life prediction and structural optimization are achieved, improving the fatigue life and reliability of large structural components. The key components such as electric motors, pumps, valves, and reducers are equipped with high-end accessories worldwide, ensuring the reliability of the entire machine and meeting the high attendance requirements of users for the equipment.
  • Original imported hydraulic components, fully electronic positive flow control system, faster response speed, better handling, using 6kV high-voltage motor, optimized power system matching, making the equipment have strong power and excellent operational efficiency. The application of technologies such as independent heat dissipation and boom descent flow regeneration makes the equipment more energy-efficient.
  • Intelligent monitoring and fault diagnosis system can effectively monitor machine operation data and assist in fault diagnosis, achieving active safety protection for the machine. The field of view monitoring system effectively eliminates blind spots in the driver's field of view, making work safer.
  • The maintenance space for various functional systems such as hydraulic system, electrical system, and power system is spacious, with maintenance channels and equipped with inspection lights. The configuration of a centralized oil and grease filling system and a fully automatic lubrication system for the working hinge pin shaft, rotary bearing and other parts greatly improves the convenience of maintenance and upkeep.
  • A super large, full field of view, dual seat cab, equipped with a fully automatic and high-power air conditioning system; The multi-point support shock absorption system and turbocharging noise reduction technology can provide drivers with a comfortable and spacious working environment, reducing their operational fatigue.

Project Unit XE3000E
Opering weight t 304
Motor power kW 1050
Dou Rong 13/16/18
Walking speed km/h 2.0/1.5
Rotation speed r/min  4
Maximum excavation radius m 13.88
Maximum unloading height m 10.3
