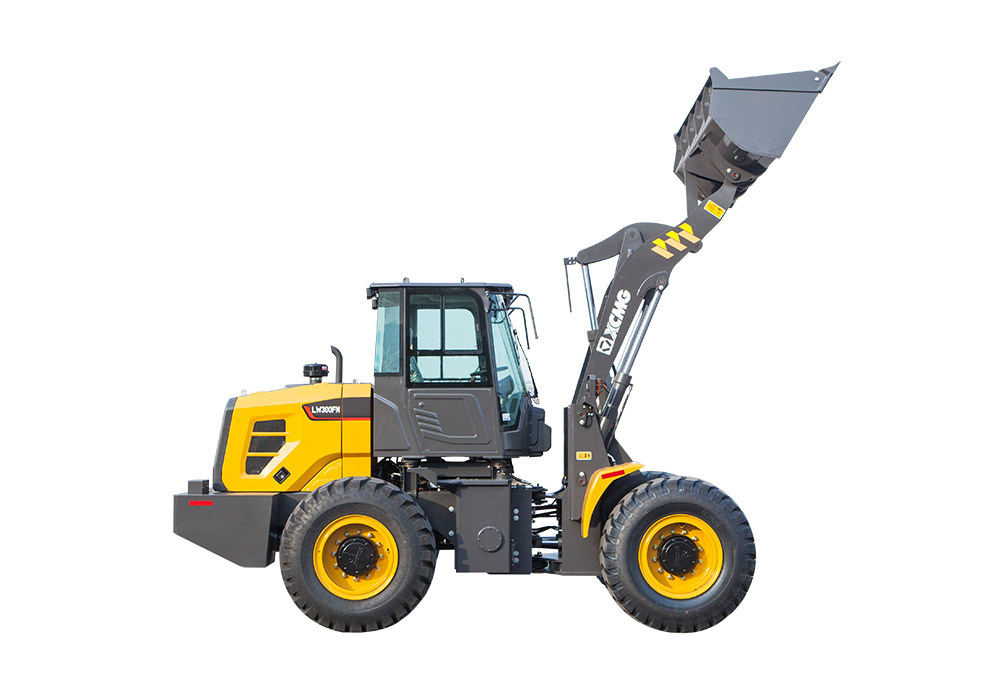

LW300FM

The LW300FM wheel loader meets the national IV emission requirements, with reasonable power matching, large torque reserve coefficient, and strong power: it is equipped with an electronically controlled high-pressure common rail engine and a fixed axle gearbox as standard, and a perfect combination of drive axles with good overload resistance, reliable quality, and energy-saving efficiency; Specially developed and designed for transportation construction, municipal sanitation, sand and gravel yards and other working conditions, mature and stable.
Description
    The standard configuration is an electronically controlled high-pressure common rail engine, with fuel injection controlled by ECU, which has high combustion efficiency and is more economical and fuel-efficient. The standard configuration is a fixed axis transmission with a large market share, which is more mature and reliable. The drive axle has good overload resistance, meeting the needs of high-intensity and high load operations, and is durable. According to the characteristics of working conditions, three engine power modes can be selected: light load, medium load, and heavy load, to achieve maximum fuel savings.
    The structural components adopt finite element analysis technology to reduce stress concentration, eliminate local weaknesses, and stabilize the standard 1.6m ° bucket. The bucket shape is optimized, easy to cut, and the full bucket rate is high; Multiple types of buckets and working devices can adapt to different operational requirements, making them flexible and efficient.


Project Unit LW300FM
Rated load capacity kg 3000
Rated power kW 92
Overall weight kg 8900
Unloading height mm 3200
Maximum digging force kN 77
